> 상품 > 그리드 인버터에서 >
50Hz 60Hz 그리드 백업 인버터 (WiFi 4G RS485 380V 출력)

50Hz 60Hz 그리드 백업 인버터 (WiFi 4G RS485 380V 출력)

50Hz 60Hz 그리드 백업 인버터

WiFi 4G 그리드 인버터

380V 출력 그리드 인버터

브랜드 이름:

Greef

인증:

CE

Model Number:

3KW - 110KW

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
정격 주파수:
50 Hz / 60 Hz
보증:
5 년
정격 출력 전압:
380V
데이터 인터페이스:
RS485 / 와이파이 / 4G
출력 전압 범위:
220vac -540vac
온도 보호:
고도:
≤2000m
MPPT 효율:
99.9%
강조하다:

50Hz 60Hz 그리드 백업 인버터

,

WiFi 4G 그리드 인버터

,

380V 출력 그리드 인버터

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T, Western Union, Moneygram
Supply Ability
Supply Ability
제품 설명
50 Hz / 60 Hz 등급 주파수 격자 백업 인버터
주요 사양
속성 가치
등급 주파수 50 Hz / 60 Hz
보증 5년
가등식 출력 전압 380V
데이터 인터페이스 RS485 / WiFi / 4G
출력 전압 범위 220Vac -540Vac
온도 보호
고도 ≤ 2000m
MPPT 효율성 990.9%
제품 개요

INVT의 네트워크 연결 인버터 제품은 몇 가지 핵심 기술 장점으로 PV 시스템에서 예외적인 성능을 보여줍니다.

  • 지능형 진단 시스템정확한 PV 스트링 결함 위치 및 AC 측면 이상 분석
  • 선택 사항아크 파오트 보호 기능 (AFCI)전체적인 안전성
  • 넓은 MPPT 전압 범위 설계988%의 변환 효율성
  • 시스템 확장 유연성을 향상시키기 위한 DC 오버 매칭 기능
  • 현장 유지보수를 줄이기 위한 멀티 모드 원격 모니터링 (RS485/WiFi/4G)
  • IP66 보호가혹한 야외 환경에 대한 등급
  • DC 역방향 보호, 반섬화 방지 및 급증 보호 등 여러 가지 안전 메커니즘
  • 고전력 부품 및 멀티 MPP 추적 기술과의 호환성
기술 매개 변수
모델 XG1KTL-S XG2KTL-S XG3KTL-S XG4KTL-S XG5KTL-S
입력 (DC)
최대 입력 전력 1.5kW 3kW 4.5kW 6kW 7.5kW
최대 입력 전압 600V
시작 전압 60V
정형 입력 전압 360V
MPPT 전압 범위 50V ~ 550V
MPPT 당 MPP 추적기 / 문자열 수 1 / 1
최대 MPPT 당 전류 20A
최대 MPPT 당 단회로 전류 26A
출력 (AC)
최대 출력 전류 5A 10A 15A 20A 22.7A
정량 출력 1kW 2kW 3kW 4kW 5kW
최대 출력력 1.1kVA 2.2kVA 3.3kVA 4.4kVA 5kVA
정형 그리드 주파수 50Hz / 60Hz
정렬 전압 220Vac / 230Vac / 240Vac
전력 요인 > 0.99 (0.8 앞선 ~ 0.8 뒤진)
THDi 3% (등급 전력)
MPPT 효율성 99.90%
위 표는 선택 된 제품 매개 변수를 보여줍니다. 다른 모델 사양을 위해 우리의 판매 팀과 연락하십시오.

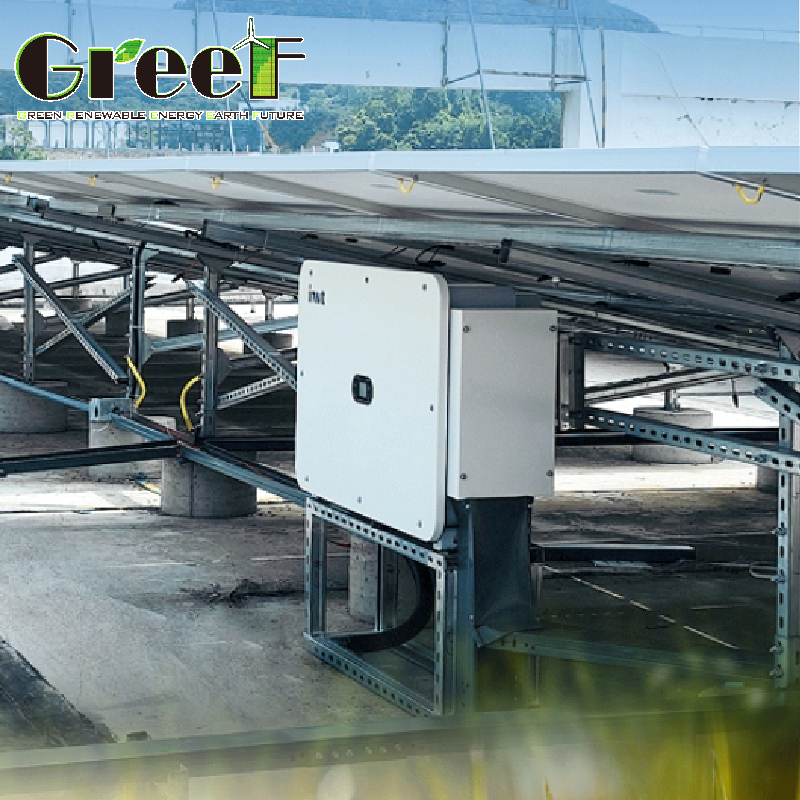

제품 이미지
50Hz 60Hz 그리드 백업 인버터 (WiFi 4G RS485 380V 출력) 0 50Hz 60Hz 그리드 백업 인버터 (WiFi 4G RS485 380V 출력) 1 50Hz 60Hz 그리드 백업 인버터 (WiFi 4G RS485 380V 출력) 2
신청서

이 솔루션은 산업, 상업 및 가정용 애플리케이션에 적합하며, 높은 효율성과 저탄소 개발 목표를 달성하는 청정 에너지 프로젝트를 지원합니다.

사용자 정의 옵션
  • 브랜드:
  • 모델 범위: 3KW ~ 110KW
  • 인증: CE
  • 최소 주문: 1 세트
  • 패키지: 폼 + 접착판 케이스
  • 진행 시간: 25 일
  • 지불 방법: T/T, 웨스턴 유니온, 머니그램
포장 및 운송

각 인버터 는 운송 도중 손상을 방지 하기 위해 보호 로 포장 된 견고한 고지 박스에 안전하게 포장 되어 있다. 패키지 에는 명확 한 조작 및 설치 지침 이 포함되어 있다.우리는 신뢰할 수 있는 운송업체와 파트너십을 맺고 신속한 배달을 보장합니다.모든 주문에 배송 추적이 가능합니다.
