> 상품 > 격자 관제사 떨어져 >

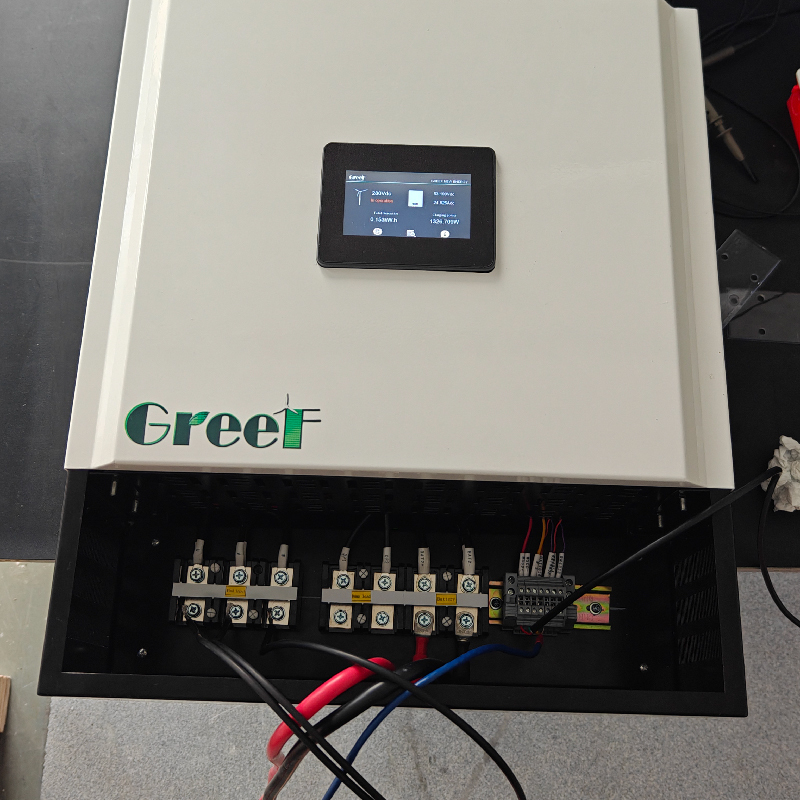

AHCC 오프 그리드 충전 컨트롤러 40Aac/80Aac MPPT 90-520V

AHCC 오프 그리드 충전 컨트롤러 40Aac/80Aac MPPT 90-520V

오프그리드 충전 컨트롤러 40Aac MPPT

80Aac 태양 전지 제어기

MPPT 충전 컨트롤러 90-520V

브랜드 이름:

Greef

인증:

CE

Model Number:

AHCC

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
모델:
AHCC
정격 입력 전류:
40AAC/80AAC
해발 높이:
3000m 전체 부하 출력
통신 인터페이스:
표준 : RS485/TCP
등급 언로드 전류:
40ADC/50ADC/100ADC
입력 보호:
퓨즈; 번개 보호 회로
최대 내전압:
5 초 동안 290vac-530vac/600vac
MPPT 전압 범위:
90 ~ 520V 사용자 정의/220 ~ 530vac
강조하다:

오프그리드 충전 컨트롤러 40Aac MPPT

,

80Aac 태양 전지 제어기

,

MPPT 충전 컨트롤러 90-520V

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T, Western Union, Moneygram, L/C.
Supply Ability
Supply Ability
제품 설명
커스터마이징 할 수 있는 오프 그리드 충전 컨트롤러
정형 시스템 전압: 42-240Vdc/200-1000Vdc (조정 가능한 매개 변수)
AHCC 오프 그리드 충전 컨트롤러 40Aac/80Aac MPPT 90-520V 0
제품 개요

GREEF 오프그리드 컨트롤러는 풍력 발전 시스템에서 필수적인 부품으로 풍력 터빈에서 3단계 AC 전류를 동전으로 변환하여 배터리 뱅크를 충전합니다.전용 MPPT 기술, 이 컨트롤러는 모듈 디자인, 전기 격리, PWM 배하 및 호스트 컴퓨터 제어 등 고급 기능으로 전력 생산을 향상시킵니다.

컨트롤러는 큰 터치 스크린 인터페이스와 효율적이고 안전하고 지능적인 발전 관리에 대한 IoT 기능을 갖추고 있습니다.풍력 에너지 시스템의 원활하고 효과적인 운영을 가능하게 하는.

기술 사양
모델 AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
정량력 5KW 10KW 20KW 30KW
제품 종류 MPPT, 고주파 고립된 새로운 에너지 변환기
DC 출력 변
에너지 저장 장치의 종류 납산 배터리, 리?? 배터리, DC 버스 바스 등
가등식 출력 전류 100A 200A 80A 150A
출력 전압 범위 42-240Vdc (정치) 200-1000Vdc (조정 가능)
전압 안정화 정확성 ≤±0.5%
안정화 정확성 ≤±1%
풍력 터빈 입구쪽
정량 전압 48Vac-380Vac 380Vac
최대 저항 전압 5초 동안 290Vac-530Vac 600Vac 5초 동안
MPPT 전압 범위 90~520V 맞춤형 220~530Vac
최대 전력 10kW 20kW 40kW 60KW
가등식 입력 전류 40Aac 80Aac 40Aac 80Aac
입력 보호 퓨즈; 번개 보호 회로
배하측
출하 방법 PWM
명소 배하 전류 40Adc 100Adc 50Adc 100Adc
최대 저항 전류 60A 200A 200A 400A
환경 조건
실내 온도 -25°C~50°C
저장 온도 -40°C~75°C
상대 습도 0~95%
해발 높이 3000m 풀 로드 출력
통신 인터페이스 표준: RS485/TCP
컨트롤러 크기 (mm) 485×267×450mm 343×605×970mm
제어기 무게 29.5kg 38.5kg 610.5kg 710.5kg
덤프 로드 크기 (mm) 695×131×194mm 700×450×750mm 820×620×900mm 900×700×1270mm
덤프 로드 무게 18kg 40kg 80kg 120kg
신청서

AHCC 오프그리드 컨트롤러는 다양한 오프그리드 발전 시스템에 적합합니다.

  • 풍력 발전 시스템:안정적인 운영을 위해 풍력 터빈에서 에너지를 효율적으로 관리합니다.
  • 수력 시스템:수력 터빈에서 전력 흐름을 제어
  • 태양광 시스템:네트워크 밖의 설비에서 태양 전지 패널의 전력을 조절합니다.
사용자 정의 옵션
브랜드 이름:크리프
모델 번호:AHCC
인증:CE
최소 주문량:1 세트
포장:폼+플라이우드 케이스
배달 시간:25 일
지불 조건:T/T, 웨스턴 유니온, 머니그램, L/C
패키지 내용
  • 격자 제어기
  • 사용 설명서
운송 정보
처리 시간:1~2 일
운송 방법:표준 운송
예상 배송:5~7박일
