AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전

AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전

MPPT 풍경 조절기

풍력 생산 컨트롤러

네트워크 밖의 MPPT 풍력 조절기

브랜드 이름:

Greef

인증:

CE

Model Number:

AHCC

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
모델:
AHCC
방법:
PWM/MPPT
정격 입력 전류:
40AAC/80AAC
유형:
충전 컨트롤러
MPPT 전압 범위:
90 ~ 520V/220 ~ 530VAC 사용자 정의
제품 유형:
MPPT, 고주파 고립 된 새로운 에너지 변환기
입력 보호:
퓨즈; 번개 보호 회로
정격 전압:
48vac-380vac
강조하다:

MPPT 풍경 조절기

,

풍력 생산 컨트롤러

,

네트워크 밖의 MPPT 풍력 조절기

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T, Western Union, Moneygram, L/C.
Supply Ability
Supply Ability
제품 설명
MPPT 풍력 제어기 - 풍력 에너지 생산의 필수 구성 요소
AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전 0
제품 개요

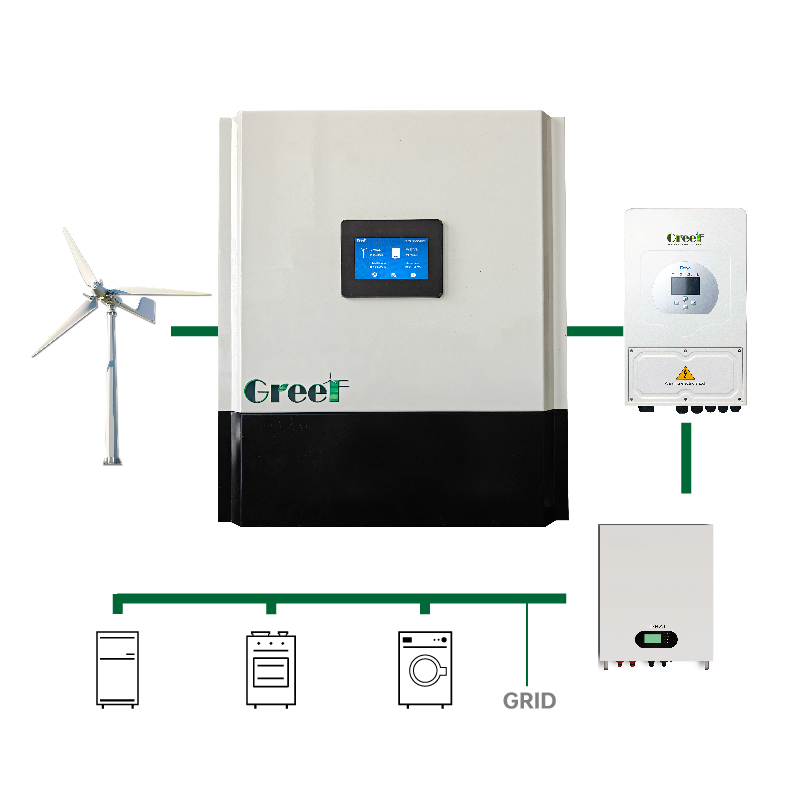

GREEF 풍력 전력 제어기는 풍력 터빈에서 3단계 전류를 동류로 변환하여 배터리 뱅크를 충전하는 기술적으로 진보된 부품입니다.전용 MPPT 기술, 이 컨트롤러는 전기 생산 효율을 크게 향상시킵니다.

주요 특징
  • 유연한 설치를 위한 모듈형 설계
  • 전기 격리 강화 안전
  • PWM 배하능력
  • 호스트 컴퓨터 제어 통합
  • 큰 터치 스크린 인터페이스 가볍게 작동
  • 원격 모니터링을 위한 IOT 기능
신청서

AHCC 오프그리드 컨트롤러는 다음을 위해 설계되었습니다.

  • 전력망 밖의 풍력 발전 시스템
  • 네트워크 밖의 수력 발전 시스템
  • 전력망 밖 태양광 발전 시스템
기술 사양
모델 AHCC-5KW AHCC-10KW AHCC-20KW AHCC-30KW
정량력 5KW 10KW 20KW 30KW
제품 종류 MPPT, 고주파 고립된 새로운 에너지 변환기
DC 출력 변
에너지 저장 장치의 종류 납산 배터리, 리?? 배터리, DC 버스 바스 등
가등식 출력 전류 100A 200A 80A 150A
출력 전압 범위 42-240Vdc (정치) 200-1000Vdc (조정 가능)
전압 안정화 정확성 ≤±0.5%
안정화 정확성 ≤±1%
풍력 터빈 입구쪽
정량 전압 48Vac-380Vac 380Vac
최대 저항 전압 5초 동안 290Vac-530Vac 600Vac 5초 동안
MPPT 전압 범위 90~520V 맞춤형 220~530Vac
최대 전력 10kW 20kW 40kW 60KW
가등식 입력 전류 40Aac 80Aac 40Aac 80Aac
입력 보호 퓨즈; 번개 보호 회로
배하측
출하 방법 PWM
명소 배하 전류 40Adc 100Adc 50Adc 100Adc
최대 저항 전류 60A 200A 200A 400A
근로 환경 조건
실내 온도 -25°C~50°C
저장 온도 -40°C~75°C
상대 습도 0~95%
해발 높이 3000m 풀 로드 출력
통신 인터페이스 표준: RS485/TCP
컨트롤러 크기 (mm) 485×267×450mm 343×605×970mm
제어기 무게 29.5kg 38.5kg 610.5kg 710.5kg
덤프 로드의 크기 (mm) 695×131×194mm 700×450×750mm 820×620×900mm 900 x 700 x 1270mm
덤프 로드 무게 18kg 40kg 80kg 120kg
제품 이미지
AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전 1 AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전 2 AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전 3 AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전 4
사용자 지정 시스템 솔루션

우리는 당신의 특정 필요에 맞게 시스템을 조정할 수 있습니다.저희에게 연락하십시오.우리의 제품에 대해 더 많이 배우기 위해서입니다.

AHCC MPPT 풍력 컨트롤러 40Aac 90-520V 독립형 충전 5
지원 및 서비스

우리의 포괄적 인 기술 지원은 최적의 시스템 성능을 보장합니다. 우리의 전문가 팀은 설치, 문제 해결 및 유지 보수 지침에 대한 지원을 제공합니다.

포장 및 운송
제품 포장

각 컨트롤러는 명확한 제품 정보와 취급 지침과 함께 견고한 고지 상자에 안전하게 포장됩니다.

선박

우리는 모든 주문에 추적 번호가 제공되는 신뢰할 수 있는 택배 서비스를 통해 배송합니다.

자주 묻는 질문
Q: 오프 그리드 컨트롤러의 브랜드 이름은 무엇입니까?
A: 브랜드 이름은 Greef입니다.
Q: 오프 그리드 컨트롤러의 모델 번호는 무엇입니까?
A: 모델 번호는 AHCC입니다.
Q: 오프 그리드 컨트롤러는 어디서 생산되는가?
A: 중국에서 제조되었습니다.
Q: 오프 그리드 컨트롤러는 어떤 자격증을 가지고 있습니까?
A: CE 인증.
질문: 지불 조건은 무엇입니까?
A: T/T, 웨스턴 유니온, 머니그램, L/C
