> 상품 > 격자 관제사에 >
IP20/IP65 보호 기능을 갖춘 효율적인 계통 연계형 컨트롤러, 99.9% MPPT 효율 및 AC220V-600V 정격 전압

IP20/IP65 보호 기능을 갖춘 효율적인 계통 연계형 컨트롤러, 99.9% MPPT 효율 및 AC220V-600V 정격 전압

IP20/IP65 보호 계통 연계형 컨트롤러

99.9% MPPT 효율 계통 연계형 컨트롤러

AC220V-600V 정격 전압 GT-PCTC 시리즈 컨트롤러

브랜드 이름:

Greef

인증:

CE

Model Number:

GT-PCTC Series Controller

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
(선택적인) 통신 인터페이스:
RS485/USB/GPRS/WIFI/이더넷
풍력 터빈 정격 전압:
AC220V~600V
냉각방식:
자연 대류
MPPT 효율성:
99.9%
제품 유형:
초전압 보호, 전력 차단 보호, 조절 된 공급 출력, 차단
보호 정도:
IP20(실내) IP65(실외)
그리드 모니터링:
PWM 정전압:
≥400dc, ≥700dc
강조하다:

IP20/IP65 보호 계통 연계형 컨트롤러

,

99.9% MPPT 효율 계통 연계형 컨트롤러

,

AC220V-600V 정격 전압 GT-PCTC 시리즈 컨트롤러

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T,웨스턴 유니온,MoneyGram,L/C
Supply Ability
Supply Ability
제품 설명
IP20/IP65 보호 등급 및 그리드 모니터링을 통해 그리드를 효율적으로 제어하십시오.

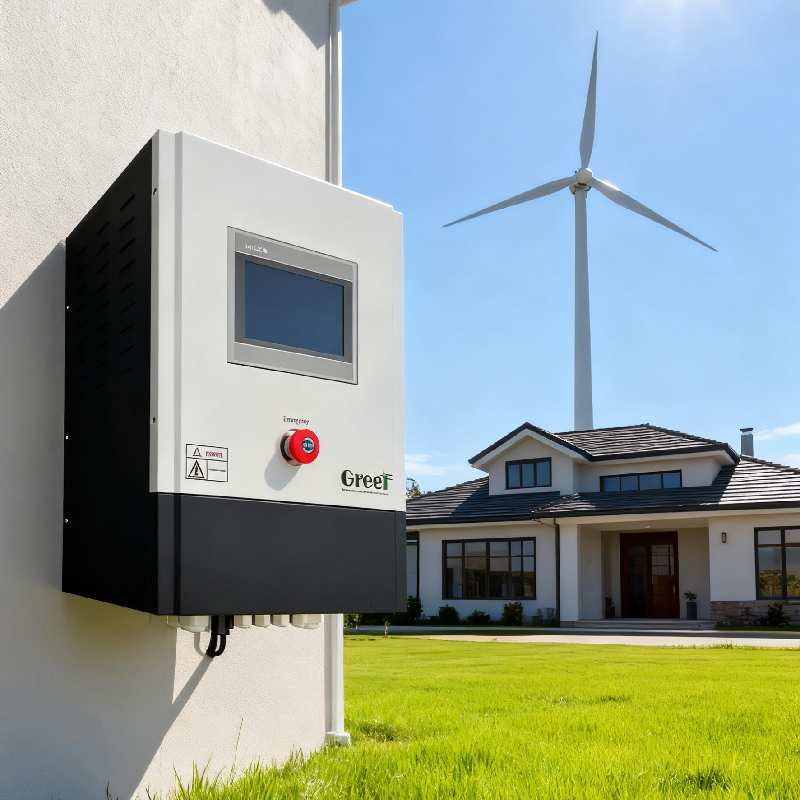

IP20/IP65 보호 기능을 갖춘 효율적인 계통 연계형 컨트롤러, 99.9% MPPT 효율 및 AC220V-600V 정격 전압 0
제품 소개

그리드 연결 컨트롤러는 풍력 발전기 그리드 연결 시스템에서 가장 기술적으로 중요한 구성 요소입니다. 풍력 터빈에서 나오는 3상 AC 전류를 DC 전류로 변환한 다음 그리드 연결 인버터로 보냅니다.

The GT-PCTC 시리즈 전문 그리드 연결 컨트롤러는 PWM 정전압 시스템과 3상 덤프 부하 브레이크 시스템의 이중 안전 제어 시스템을 갖추고 있습니다. 이 혁신적인 솔루션은 또한 Growatt, Deye, Solis 및 Ivet과 같은 주요 브랜드의 태양광 인버터와 인터페이스하여 태양광 인버터가 풍력 터빈 작동 조건에 적응할 수 있도록 합니다.

제품 매개변수
유형 GT-PCTC-1.5KW GT-PCTC-2KW GT-PCTC-3KW GT-PCTC-5KW
풍력 터빈 정격 전력 1.5KW 2KW 3KW 5KW
풍력 터빈 정격 전압 AC220V-240V AC220V-240V AC220V-380V AC380-450V
기능:
정류기, 제어, DC 출력
자동 보호 기능:
과전압 보호, 그리드 차단 보호, 규제 공급 출력, 피뢰기
수동 기능:
수동 브레이크, 재설정, 비상 스위치
디스플레이 모드:
LCD 터치 스크린
3상 덤프 부하 시간 지연:
12-20분 (모든 모델)
주위 온도:
-30-60°C
보호 등급:
IP20 (실내) / IP65 (실외)
주요 특징
  • 향상된 보호를 위한 이중 안전 제어 시스템
  • 주요 태양광 인버터 브랜드와 호환
  • 포괄적인 시스템 모니터링을 위한 LCD 터치 스크린
  • IP20/IP65 보호 기능의 견고한 구조
  • 넓은 작동 온도 범위(-30°C ~ 60°C)
응용 분야

이 기술은 다음을 포함한 그리드 연결 시스템에 사용됩니다.

  • 풍력 발전
  • 수력 발전
  • 태양광 발전
사용자 정의 옵션
브랜드 이름:
Greef
모델 번호:
GT-PCTC 시리즈 컨트롤러
인증:
CE
최소 주문 수량:
1 세트
포장 세부 정보:
폼 + 합판 케이스
포장 및 배송

On Grid Controller는 운송 중 손상을 방지하기 위해 보호 폼이 있는 튼튼한 판지 상자에 조심스럽게 포장됩니다. 각 패키지에는 설치가 용이하도록 사용 설명서와 필요한 케이블이 포함되어 있습니다.

주문은 즉시 처리되며 추적 정보와 함께 신뢰할 수 있는 운송업체를 통해 배송됩니다. 컨트롤러가 완벽한 상태로 도착하도록 주의 깊게 포장합니다.
