Name: Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

Ethernet Communication Interface On Grid Controller

AC220V-600V Rated Voltage Grid-Tied Controller

Natural Convection Cooling Wind Generator Controller

브랜드 이름:

Greef

인증:

Model Number:

GT-PCTC Series Controller

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

MPPT 효율성:

99.9%

냉각방식:

자연 대류

(선택적인) 통신 인터페이스:

RS485/USB/GPRS/WIFI/이더넷

수동 기능:

수동 브레이크, 리셋, 비상 스위치

출력 주파수:

50Hz/60Hz

풍력 터빈 정격 전압:

AC220V~600V

그리드 모니터링:

예

기능:

정류기, 제어, DC 출력

강조하다:

Ethernet Communication Interface On Grid Controller

AC220V-600V Rated Voltage Grid-Tied Controller

Natural Convection Cooling Wind Generator Controller

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

협상 가능

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

AC 전압 작동 범위 150V-550V의 그리드 컨트롤러에서 접지 고장 모니터링, 태양광 에너지 통합용으로 설계됨

가장 좋은 가격 을 구하라

700kW 하이브리드 컨버터, 지능형 공랭식 및 최대 효율 95% 태양광 발전 전환용

가장 좋은 가격 을 구하라

비디오

스마트 애플리케이션에 적합한 접지 고장 감시 기능이 있는 150V ~ 550V AC 전압 작동 범위 터치스크린 디스플레이 하이브리드 컨버터

가장 좋은 가격 을 구하라

비디오

최대 효율 95% AC 전압 작동 범위 150V-550V 및 태양광 전력 솔루션을 갖춘 하이브리드 그리드 연계 컨버터

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Ethernet Communication Interface On Grid Controller

50Hz/60Hz Output Frequency | Natural Convection Cooling Method

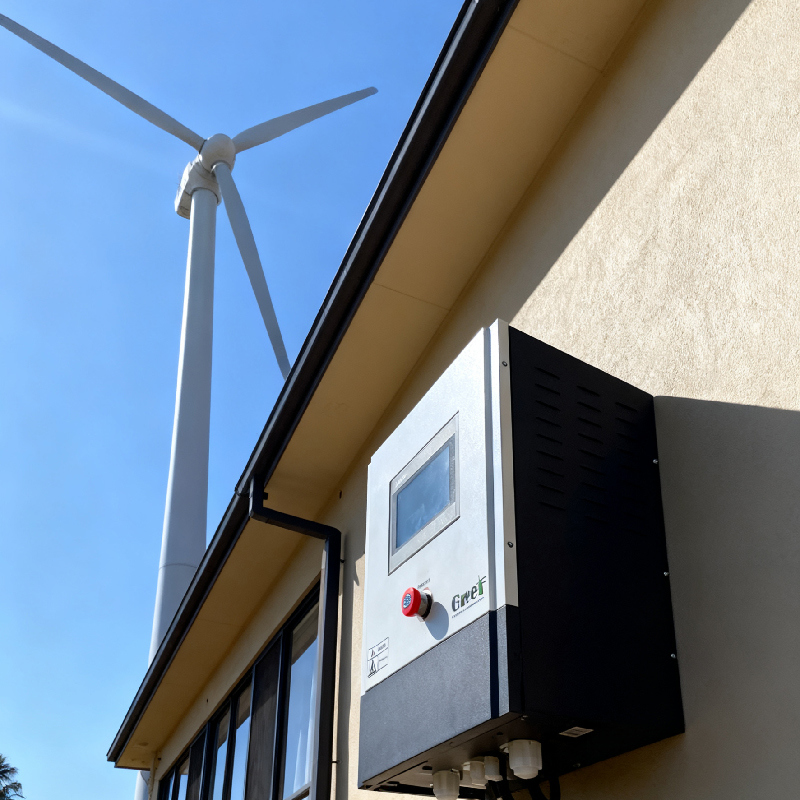

The GT-PCTC series Grid-Tied Controller is a critical component in wind generator on-grid systems, converting three-phase AC current from wind turbines into DC current for grid-tie inverters. This professional-grade controller features a dual safety control system combining PWM constant voltage and three-phase dump load brake systems.

System Integration

This solution enables seamless integration with leading solar inverters including Growatt, Deye, Solis, and Ivet, allowing solar inverters to adapt to wind turbine operating conditions.

Greef has a professional team to create tailor-made systems. The above images are examples - contact us for custom requirements.

Applications

This technology is designed for grid-connected renewable energy systems including:

Wind power generation systems
Hydroelectric power generation
Solar power generation integration

Technical Specifications

Feature	Specification
PWM Constant Voltage	≥400DC, ≥700DC
Wind Turbine Rated Voltage	AC220V-600V
Communication Interface	RS485/USB/GPRS/WIFI/Ethernet (optional)
Protection Features	Over Voltage Protection, Grid Cut Off Protection, Regulated Supply Output, Arrester
Monitoring Capabilities	Wind turbine speed, wind speed, power curve control

Customization Options

Greef offers complete customization for the GT-PCTC Series Controller:

Brand: Greef
Certification: CE
Minimum Order: 1 Set
Delivery Time: 25 Working Days
Payment Options: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Packaging: Each unit is securely packaged in foam and plywood cases with protective bubble wrap, including product manual and installation accessories.

Shipping: Orders processed within 1-2 business days with standard tracked shipping. Delivery times vary by location.
