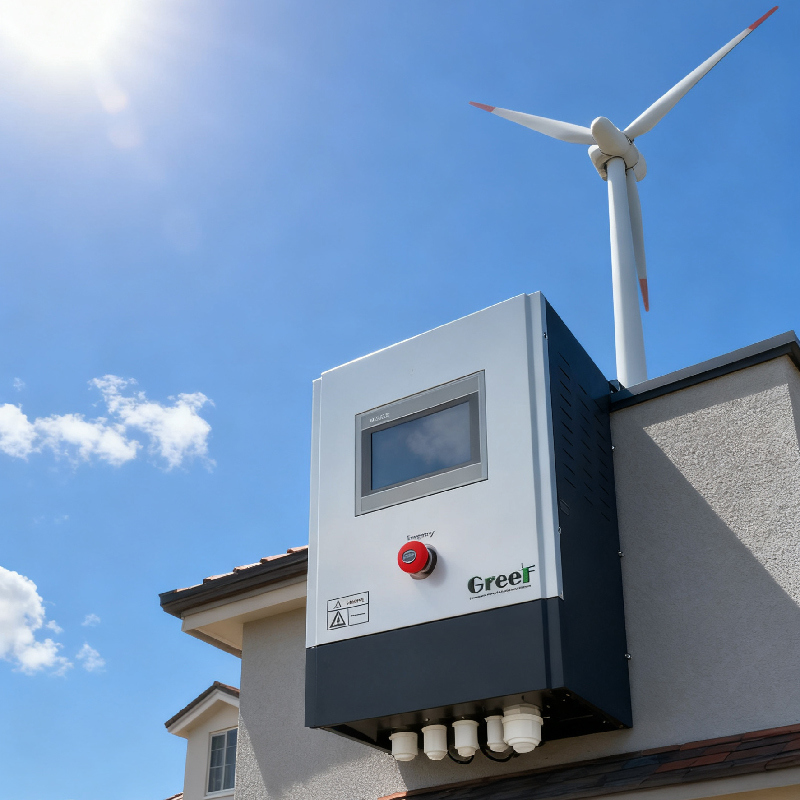

Name: On Grid Controller with Rectifier Control and DC Output Functions for Wind Turbine Systems
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

On Grid Controller with Rectifier Control and DC Output Functions for Wind Turbine Systems

Rectifier Function On Grid Controller

Control Function Grid-Tied Controller

DC Output Function Wind Turbine Controller

브랜드 이름:

Greef

인증:

Model Number:

GT-PCTC Series Controller

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

(선택적인) 통신 인터페이스:

RS485/USB/GPRS/WIFI/이더넷

MPPT 효율성:

99.9%

출력 주파수:

50Hz/60Hz

PWM 정전압:

≥400dc, ≥700dc

그리드 모니터링:

예

기능:

정류기, 제어, DC 출력

풍력 터빈 정격 전압:

AC220V~600V

보호 정도:

IP20(실내) IP65(실외)

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

가장 좋은 가격 을 구하라

비디오

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

가장 좋은 가격 을 구하라

비디오

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

가장 좋은 가격 을 구하라

비디오

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Grid Monitoring On Grid Controller PWM Constant Voltage of ≥700dc

The GT-PCTC series grid-tied controller is a technologically advanced component for on-grid wind generator systems. It efficiently converts three-phase AC current from wind turbines into DC current before sending it to grid-tie inverters.

Key Features

Dual safety control systems: PWM constant voltage and three-phase dump load brake
Compatible with leading solar inverters (Growatt, Deye, Solis, Ivet)
LCD touch screen display with comprehensive monitoring capabilities
Multiple protection functions including over voltage and grid cut-off
Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)

Technical Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
PWM constant voltage	≥400dc		≥700dc
3-phase dump load time-lapse	12-20 min

Additional Specifications

Function: Rectifier, Control, DC output

Automatic protection: Over voltage, Grid cut off, Regulated supply output, Arrester

Manual functions: Manual brake, Reset, Emergency switch

Environment temperature: -30°C to 60°C

Relative humidity: <90% (No condensation)

Noise (1m): <40dB

Degree of protection: IP20 (Indoor) / IP65 (Outdoors)

Cooling method: Forced air cooling

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Customization Options

Brand: Greef
Model: GT-PCTC Series Controller
Certification: CE
Minimum Order: 1 Set
Packaging: Foam + plywooden case
Delivery Time: 25 working days
Payment Options: T/T, Western Union, MoneyGram, L/C

Package Contents

On Grid Controller
User Manual
Mounting Hardware

Products are carefully packaged and typically shipped within 3-5 business days after order confirmation.
