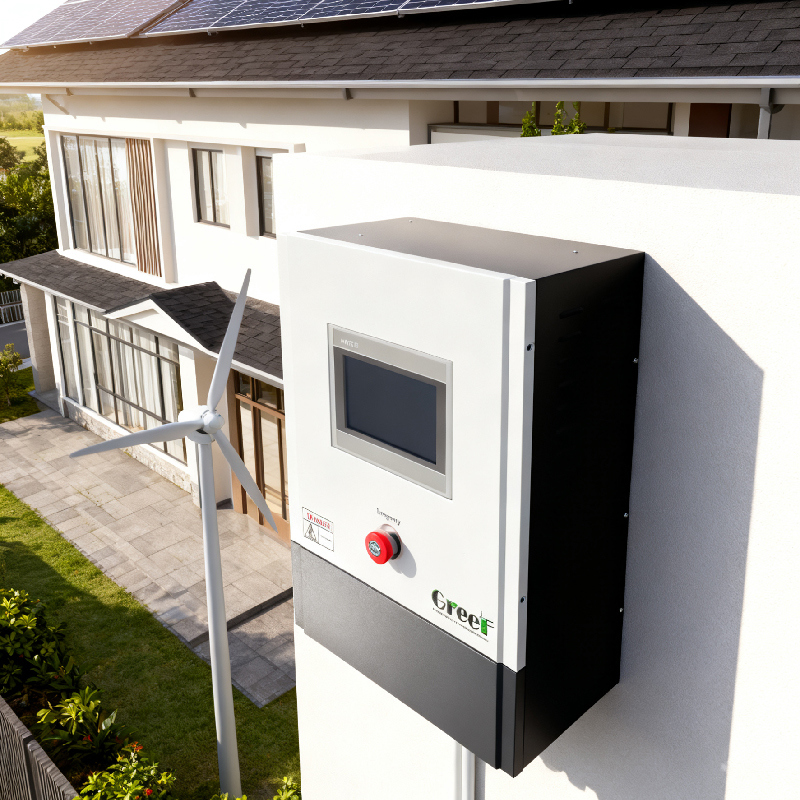

Name: On Grid Controller with IP65 Outdoor Protection, Double Safety Control Systems, and Three-Phase Dump Load Brake System
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

On Grid Controller with IP65 Outdoor Protection, Double Safety Control Systems, and Three-Phase Dump Load Brake System

IP65 Outdoor Protection On Grid Controller

Double Safety Control Systems Grid-Tied Controller

Three-Phase Dump Load Brake System Wind Turbine Controller

브랜드 이름:

Greef

인증:

Model Number:

GT-PCTC Series Controller

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

보호 정도:

IP20(실내) IP65(실외)

출력 주파수:

50Hz/60Hz

풍력 터빈 정격 전압:

AC220V-600V

PWM 정전압:

≥400dc, ≥700dc

제품 유형:

초전압 보호, 전력 차단 보호, 조절 된 공급 출력, 차단

냉각방식:

자연 대류

기능:

정류기, 제어, DC 출력

(선택적인) 통신 인터페이스:

RS485/USB/GPRS/WIFI/이더넷

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

가장 좋은 가격 을 구하라

비디오

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

가장 좋은 가격 을 구하라

비디오

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

가장 좋은 가격 을 구하라

비디오

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Grid-Tied Power Curve Controller with 99.9% MPPT Efficiency

The GT-PCTC series grid-tied controller is a critical component for wind generator on-grid systems, converting three-phase AC current from wind turbines into DC current for transmission to grid-tie inverters. This advanced controller features dual safety systems and seamless integration with leading solar inverters.

Key Features

PWM constant voltage system (≥700V DC capability)
Three-phase dump load brake system
99.9% MPPT efficiency for optimal power conversion
Compatible with Growatt, Deye, Solis, and Ivet solar inverters
LCD touch screen display with comprehensive monitoring
Double safety control systems for reliable operation

Technical Specifications

Parameter	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
3-phase dump load voltage	450±5Vdc		750±5Vdc
PWM constant voltage	≥400Vdc		≥700Vdc
Environment temperature	-30°C to 60°C
Degree of protection	IP20 (Indoor) / IP65 (Outdoors)

System Functions

Primary Functions:

Rectifier, Control, DC Output

Automatic Protection:

Over voltage protection, Grid cut off protection, Regulated supply output, Arrester

Manual Controls:

Manual brake, Reset, Emergency switch

Display Parameters:

Generator speed, Input/output voltages/currents, Power generation statistics, Power Curve setting

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Greef provides custom system solutions - contact us for specific requirements

Customization Options

Brand:

Greef

Model Series:

GT-PCTC

Certification:

MPPT Efficiency:

99.9%

Output Frequency:

50Hz/60Hz

Cooling Method:

Natural Convection

Packaging & Shipping

Each controller is securely packaged in foam-lined plywood cases for maximum protection during transit. Orders ship within 1-2 business days with tracking provided.
