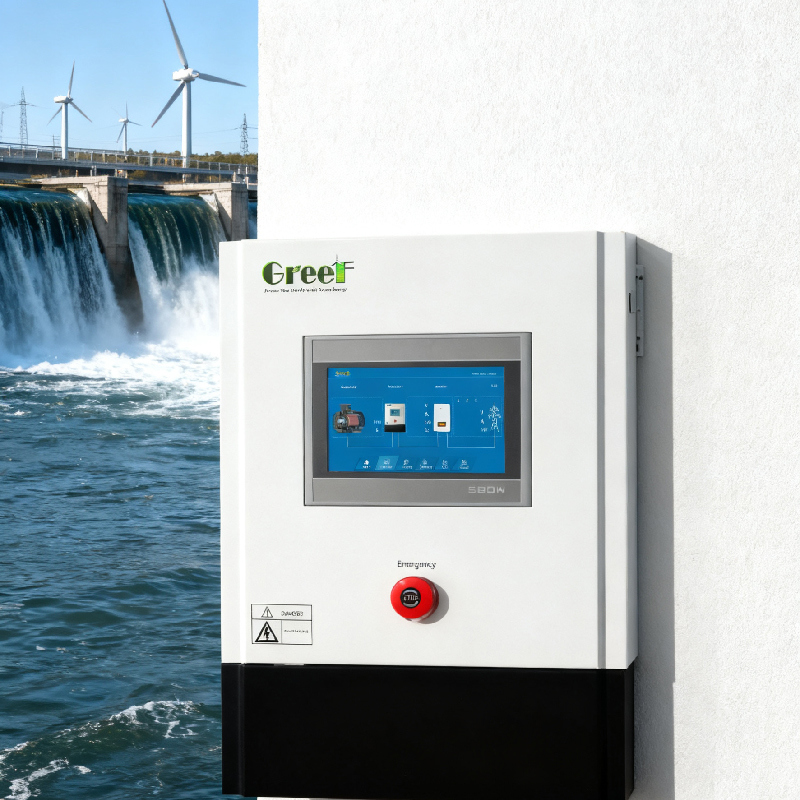

Name: On Grid Controller with AC220V-600V Rated Voltage PWM Constant Voltage System and Three-Phase Dump Load Brake System
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

On Grid Controller with AC220V-600V Rated Voltage PWM Constant Voltage System and Three-Phase Dump Load Brake System

AC220V-600V Rated Voltage On Grid Controller

PWM Constant Voltage System Grid-Tied Controller

Three-Phase Dump Load Brake System Wind Turbine Controller

브랜드 이름:

Greef

인증:

Model Number:

GT-PCTC Series Controller

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

풍력 터빈 정격 전압:

AC220V~600V

수동 기능:

수동 브레이크, 리셋, 비상 스위치

냉각방식:

자연 대류

출력 주파수:

50Hz/60Hz

(선택적인) 통신 인터페이스:

RS485/USB/GPRS/WIFI/이더넷

보호 정도:

IP20(실내) IP65(실외)

제품 유형:

초전압 보호, 전력 차단 보호, 조절 된 공급 출력, 차단

그리드 모니터링:

예

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

가장 좋은 가격 을 구하라

비디오

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

가장 좋은 가격 을 구하라

비디오

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

가장 좋은 가격 을 구하라

비디오

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

IP65 Outdoor Wind Turbine Grid Controller

Product Overview

The GT-PCTC series Grid-Tied Controller is a critical component in on-grid wind generator systems, converting three-phase AC current from wind turbines into DC current for grid-tie inverters. Featuring dual safety control systems (PWM constant voltage and three-phase dump load brake), this professional-grade controller offers seamless integration with solar inverters from leading brands including Growatt, Deye, Solis, and Ivet.

Technical Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier, Control, DC output

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW	GT-ACDC-50KW	GT-ACDC-100KW
Wind turbine rated power	10KW	20KW	30KW	50KW	100KW
Wind turbine rated voltage	AC380-520V

Key Features

Dual safety control systems: PWM constant voltage and three-phase dump load brake
LCD touch screen display with comprehensive performance metrics
Automatic protection functions including over voltage and grid cut off protection
Manual controls for brake, reset, and emergency switch
IP65 protection rating for outdoor use
Forced air cooling system
Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)

Environmental Specifications

Operating temperature: -30°C to 60°C

Relative humidity: <90% (non-condensing)

Noise level (1m): <40dB

Protection rating: IP20 (Indoor) / IP65 (Outdoors)

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Customization Options

Brand Name: Greef
Model Number: GT-PCTC Series Controller
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging: Foam + plywood case
Delivery Time: 25 working days
MPPT Efficiency: 99.9%
Output Frequency: 50Hz/60Hz

Package Contents

On Grid Controller unit
User manual
Mounting hardware
Warranty card

Shipping Information

Shipping method: Standard delivery
Shipping time: 3-5 business days
Shipping cost: Free
