Name: On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions

240-550V AC Voltage Range On Grid Controller

95% Maximum Efficiency Grid Tied Controller

LCD SMART Touch Screen Energy Management Controller

브랜드 이름:

Greef

인증:

Model Number:

AC PCS

저희와 연락

인용 을 요청 하십시오

On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions

제품 세부 정보

최대효율(%):

95%

배터리 전압 범위(Vdc):

350 - 450

정형 그리드 주파수 ((Hz):

50HZ/60HZ

최대교류전류(A):

180

정격 전력 (KW):

100

정격 그리드 전압(V):

400

통신 모드:

이더넷, RS485, 와이파이

토폴로지:

AC-DC 정류기, DC-DC 벅 부스트, DC-AC 인버터.EMS

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

가장 좋은 가격 을 구하라

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

가장 좋은 가격 을 구하라

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

가장 좋은 가격 을 구하라

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

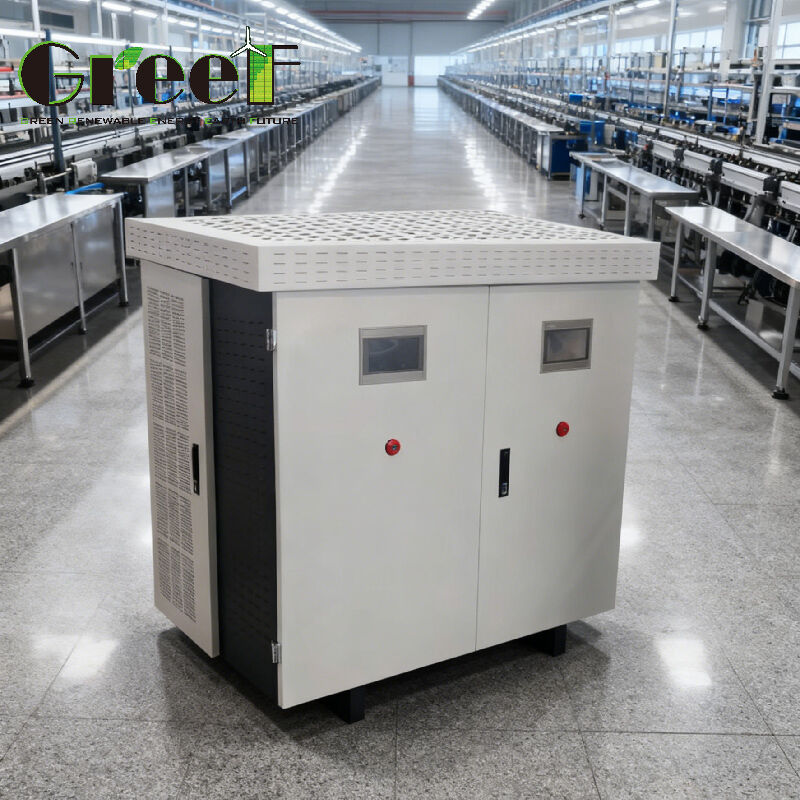

AC/DC Multi-Functional Power Converter with SMART Touch Screen

GREEF ENERGY's multi-functional converter integrates multiple essential power management functions into a single compact unit. Designed specifically for permanent magnet generators (PM generators), it provides efficient AC-to-DC rectification for battery charging and DC-to-AC inversion capabilities. The system incorporates a comprehensive energy management system to optimize overall performance and reliability.

Technical Specifications

Generator AC Input Parameters

Rated Power	100 kW
Rated Voltage	≥320 Vac
Optimal Rated Voltage	450 Vac
AC Voltage Range	240-550 Vac
Maximum AC Current	180 A

Battery Input Data

Battery Type	Lithium-ion
Voltage Range	350-450 Vdc
Rated Battery Voltage	400 Vdc
Max Charge/Discharge Current	250 A

Grid-Connected Output Parameters

Rated Power	100 kW
Maximum Power	120 kW
Rated Current	144 A
Maximum Current	173 A
Grid Voltage Range	300-460 V
Grid Frequency	50/60 Hz
Total Harmonic Distortion	<3%
Power Factor	>0.99 (-1 to 1)

System Performance & Protection

Maximum Efficiency
95%

Overload Capacity
1.2x nominal power for 1 minute

Protection Level
IP54

Operating Temperature
-40°C to 60°C

Key Features

Dual LCD touchscreen interface for intuitive control
Advanced voltage and frequency control for PMSG systems
Grid-tied operation capability with grid charging
Comprehensive protection features including overvoltage, short-circuit, and surge protection
Intelligent air cooling system
Multiple communication interfaces: Ethernet, RS485, WiFi
Remote monitoring and configuration capabilities

Applications

This versatile converter system serves multiple power management applications including renewable energy integration, off-grid power systems, industrial backup power, and grid-interactive installations.

Renewable Energy
Integration of PMSG from wind/hydro turbines

Off-Grid Systems
Remote sites, cabins, telecommunications

Grid-Interactive
Grid synchronization and battery charging

Industrial/Commercial
Backup power and building management integration

Customization & Ordering

AC PCS Model Features:
• 100 kW rated power with 400 Vdc battery voltage
• 450 Vac optimal generator voltage (240-550 Vac range)
• CE certified for quality and safety
• Multiple communication modes: Ethernet, RS485, WiFi

Order Information:
• Minimum Order: 1 set
• Delivery: 25 working days
• Payment: T/T, Western Union, MoneyGram, L/C
• Packaging: Secure foam and plywood cases
