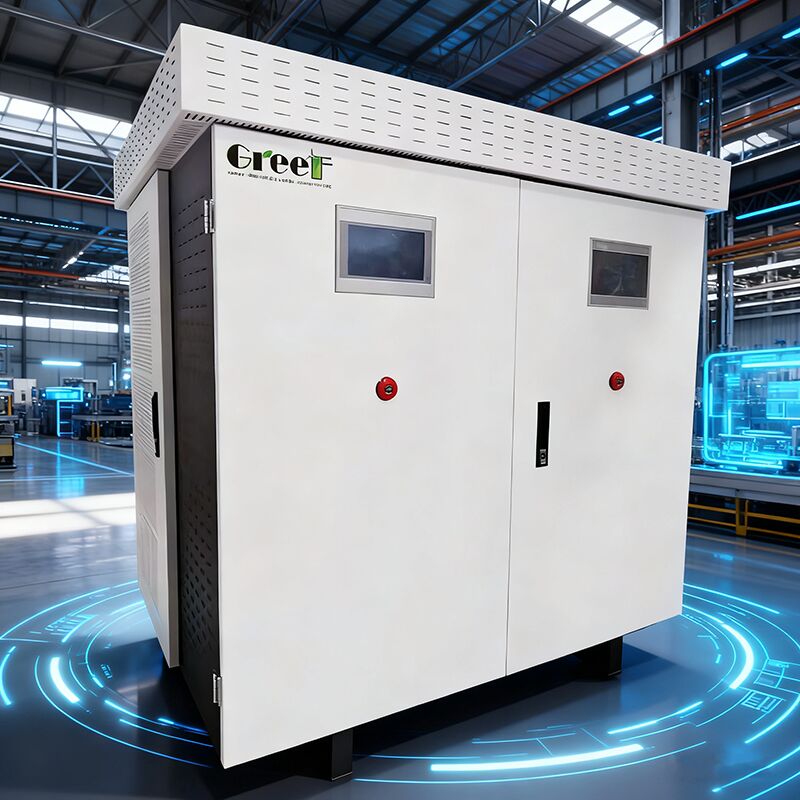

Name: AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

50Hz/60Hz Rated Grid Frequency On Grid Controller

-40 to 60 Degrees Environment Temperature Wind Controller

100 kW Rated Power AC Generator-Battery Hybrid Converter

브랜드 이름:

Greef

인증:

Model Number:

AC PCS

저희와 연락

인용 을 요청 하십시오

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

제품 세부 정보

정형 그리드 주파수 ((Hz):

50HZ/60HZ

환경 온도:

-40 ~ 60

정격전압(VAC):

≥ 320

정격 충방전 전류(A):

144

통신 모드:

이더넷, RS485, 와이파이

토폴로지:

AC-DC 정류기, DC-DC 벅 부스트, DC-AC 인버터.EMS

정격 배터리 전압(Vdc):

400

최적의 발전기 정격전압(Vac):

450

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

가장 좋은 가격 을 구하라

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

가장 좋은 가격 을 구하라

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

가장 좋은 가격 을 구하라

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

AC Generator-Battery Hybrid Converter

Integrated Power Conversion System

The GREEF ENERGY multi-functional converter integrates AC-to-DC rectification for Permanent Magnet generators, battery charging, and DC-to-AC inversion in a single system. Featuring advanced energy management and dual LCD touchscreen interface, this converter provides stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), ensuring reliable power supply to connected loads. Configurable grid-tied operation enables seamless integration with both standalone and grid-connected power systems.

Technical Specifications

Generator Input

Rated Power: 100 kW

Voltage Range: 240-550 Vac

Optimal Voltage: 450 Vac

Max Current: 180 A

Battery System

Type: Lithium-ion

Voltage Range: 350-450 Vdc

Rated Voltage: 400 Vdc

Max Charge/Discharge: 250 A

Grid Output

Rated Power: 100 kW

Max Power: 120 kW

Voltage: 300-460 V

Frequency: 50/60 Hz

Performance & Protection

Parameter	Specification
Efficiency	Up to 95%
Power Factor	>0.99 (adjustable -1 to 1)
THD	<3% at rated power
Overload Capacity	1.2x rated power for 1 minute
Protection Level	IP54
Operating Temperature	-40°C to 60°C
Max Altitude	4,000 meters

System Features

AC-DC rectification, DC-DC buck boost, and DC-AC inversion topology
Energy Management System (EMS)
Dual LCD SMART touchscreen interface
Intelligent air cooling system
Communication: Ethernet, RS485, WiFi
Standby power consumption: <50 W

Applications

Renewable Energy Systems

Integration with PMSG wind turbines and hydro turbines for off-grid or hybrid power setups

Off-Grid & Backup Power

Central hub for remote locations, cabins, telecom stations with generator input, battery charging, and inverter control

Grid-Interactive Systems

Grid-tied operation for battery charging and potential grid feedback

Industrial & Commercial Power

Stable power supply under unbalanced loads with remote monitoring via WIFI/LAN and Modbus integration

Customization & Ordering

The GREEF ENERGY AC PCS On Grid Controller offers comprehensive customization options with detailed monitoring capabilities including generator speed, input/output parameters, and power generation statistics. CE certified and manufactured to highest standards.

Physical Dimensions

Height: 1500 mm
Width: 1500 mm
Depth: 1300 mm
Weight: ≤ 600 kg (excluding dump load)

Order Information

Parameter	Details
Minimum Order	1 set
Delivery Time	~25 working days
Payment Terms	T/T, Western Union, MoneyGram, L/C
Packaging	Foam and plywood cases
