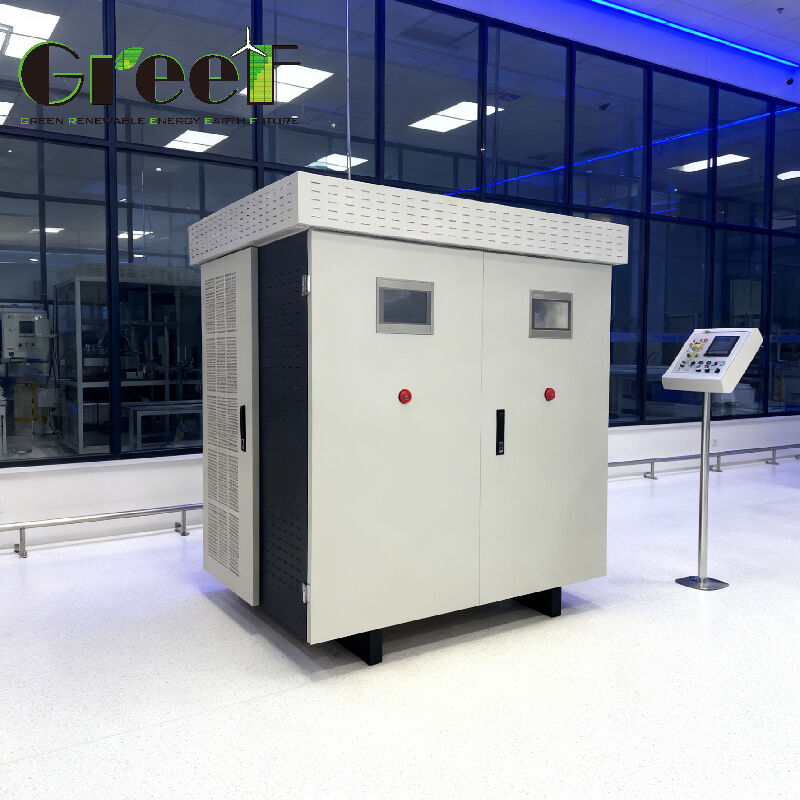

Name: On Grid Controller with Lithium-ion Battery 240-550V AC Voltage Range and Intelligent Air Cooling for Energy Management
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

집 > 상품 > 격자 관제사에 >

On Grid Controller with Lithium-ion Battery 240-550V AC Voltage Range and Intelligent Air Cooling for Energy Management

Lithium-ion Battery On Grid Controller

240-550V AC Voltage Range AC Generator-Battery Hybrid Converter

Intelligent Air Cooling Energy Management Controller

브랜드 이름:

Greef

인증:

Model Number:

AC PCS

저희와 연락

인용 을 요청 하십시오

On Grid Controller with Lithium-ion Battery 240-550V AC Voltage Range and Intelligent Air Cooling for Energy Management

제품 세부 정보

정격전압(VAC):

≥ 320

냉각방식:

지능형 공기 냉각

최대 충전 및 방전 전류(A):

250

AC 전압 작동 범위(Vac):

240 ~ 550

통신 모드:

이더넷, RS485, 와이파이

정격 충방전 전류(A):

144

배터리 전압 범위(Vdc):

350 - 450

배터리 유형:

리튬이온

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

가장 좋은 가격 을 구하라

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

가장 좋은 가격 을 구하라

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

가장 좋은 가격 을 구하라

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

AC Generator-Battery Hybrid Converter

The GREEF ENERGY multi-functional converter combines AC-to-DC rectification for permanent magnet generators, battery charging, and DC-to-AC inversion with comprehensive energy management for optimized power flow.

Technical Specifications

Parameter	Specification
Model	Mars-100kt
Rated Power	100 kW
Rated Voltage	≥ 320 Vac
Optimal Generator Voltage	450 Vac
AC Voltage Working Range	240 - 550 Vac
Maximum AC Current	180 A
Battery Type	Lithium-ion
Battery Voltage Range	350 - 450 Vdc
Rated Battery Voltage	400 Vdc
Maximum Efficiency	95%

Generator AC Input

Rated power of 100 kW with AC voltage working range from 240 to 550 Vac and maximum AC current of 180 A.

Battery Input

Lithium-ion battery system with voltage range of 350-450 Vdc and maximum charging/discharging current of 250 A.

Grid-Connected Output

Rated charging/discharging power of 100 kW, grid voltage range of 300-460 V, and support for 50/60 Hz frequencies.

Protection & Safety

Over-voltage and speed protection
AC short-circuit protection
AC output overcurrent protection
Level 2 surge protection

Operating Conditions

Ambient temperature range: -40℃ to 60℃ • Protection level: IP54 • Maximum altitude: 4,000 meters

Applications

This versatile converter is designed for reliable power management across multiple applications:

Renewable energy systems with Permanent Magnet Synchronous Generators
Off-grid and backup power for remote locations and telecom stations
Grid-interactive systems for enhanced energy efficiency
Industrial and commercial power supply with remote monitoring
Micro-hydropower plants with water gate motor control

Customization Services

Greef offers customized On Grid Controller solutions (AC PCS model) with advanced power curve controller functionality. Features include:

Sophisticated topology with AC-DC Rectifier, DC-DC Buck Boost, and DC-AC Inverter
High-resolution LCD SMART Touch Screen display
CE certified for quality and safety
Minimum order: 1 set with negotiable pricing
Secure packaging with foam and plywood cases
Delivery: 25 working days
Payment options: T/T, Western Union, MoneyGram, L/C
