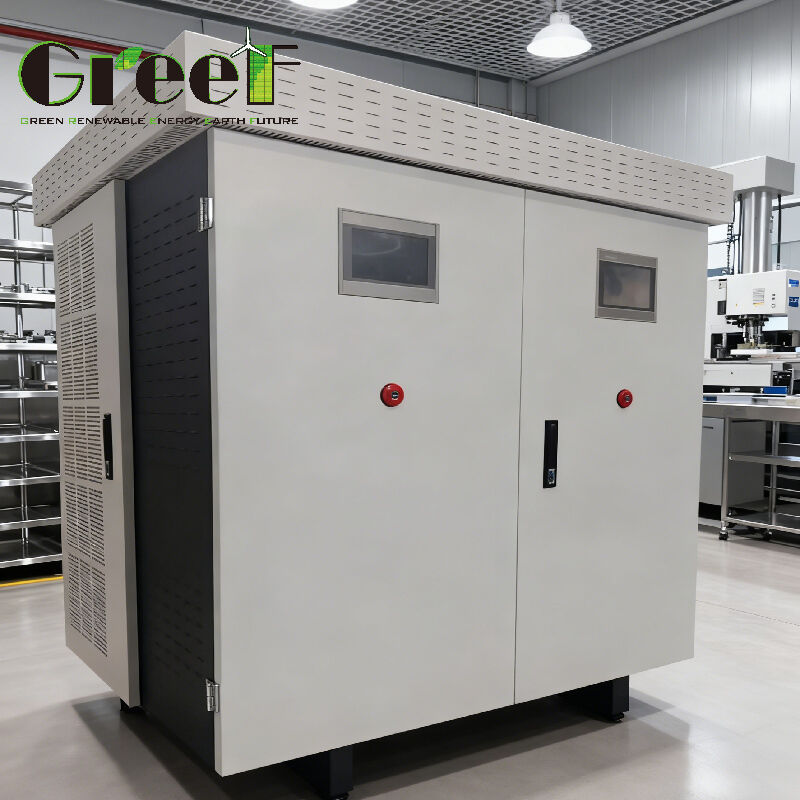

On Grid Controller with 95% Maximum Efficiency and WIFI Communication Mode Featuring AC DC Rectifier Topology for Energy Solutions

95% Maximum Efficiency On Grid Controller

WIFI Communication Mode AC Generator-Battery Hybrid Converter

AC DC Rectifier Topology Energy Management Controller

브랜드 이름:

Greef

인증:

Model Number:

AC PCS

저희와 연락

인용 을 요청 하십시오

On Grid Controller with 95% Maximum Efficiency and WIFI Communication Mode Featuring AC DC Rectifier Topology for Energy Solutions

제품 세부 정보

환경 온도:

-40 ~ 60

정격전압(VAC):

≥ 320

통신 모드:

이더넷, RS485, 와이파이

정격 배터리 전압(Vdc):

400

정격 그리드 전압(V):

400

배터리 전압 범위(Vdc):

350 - 450

정형 그리드 주파수 ((Hz):

50HZ/60HZ

표시 내용:

발전기 회전수(rpm),입력전압(Vdc), 입력전류(Vac),출력전력(kW), 계통전압(Vac),계통전류(A), 오늘발전량(kWh), 이번달 발전량, 지난달 발전량, 올해 발전량,

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

가장 좋은 가격 을 구하라

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

가장 좋은 가격 을 구하라

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

가장 좋은 가격 을 구하라

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

AC Generator-Battery Hybrid Converter

Advanced hybrid power converter with 95% maximum efficiency, grid controller with WiFi communication, and AC-DC rectifier topology designed for comprehensive energy solutions.

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple critical functions into a single system. It provides AC-to-DC rectification optimized for permanent magnet generators, battery charging capabilities, and DC-to-AC inversion. The integrated energy management system ensures optimal performance across all operations.

Featuring a configurable dual LCD touchscreen interface, the converter offers intuitive monitoring and control. Advanced converter technology maintains stable voltage and frequency regulation for permanent magnet synchronous generators, guaranteeing reliable power delivery to connected loads.

The system supports programmable grid-tied operation, enabling synchronization with electrical grids for standard operation and grid-based battery charging, enhancing versatility across diverse energy applications.

Technical Specifications

Generator AC Input:

Rated Power	100 kW
Rated Voltage	≥320 Vac (Optimal: 450 Vac)
Voltage Range	240-550 Vac
Maximum AC Current	180 A

Battery Input:

Battery Type	Lithium-ion
Voltage Range	350-450 Vdc
Rated Voltage	400 Vdc
Max Charge/Discharge Current	250 A

Grid-Connected Output:

Rated Power	100 kW
Maximum Power	120 kW
Rated Current	144 A
Maximum Current	173 A
Grid Voltage	400 V (300-460 V range)
Grid Frequency	50 Hz / 60 Hz
THD	<3% at rated power
Power Factor	>0.99 (adjustable -1 to 1)
Overload Capacity	1.2x nominal power for 1 minute

System Performance:

Maximum Efficiency: 95%
Topology: AC-DC Rectifier, DC-DC Buck Boost, DC-AC Inverter with EMS
Operating Temperature: -40°C to 60°C
Protection Rating: IP54
Standby Power: <50 W
Maximum Altitude: 4000 m (derating above 3000 m)
Cooling: Intelligent Air Cooling
Communication: Ethernet, RS485, WiFi
Display: LCD SMART Touch Screen

Physical Specifications:

Dimensions: 1500mm (H) × 1500mm (W) × 1300mm (D)
Weight: Up to 600 kg (excluding dump load)

Protection Features

Optional over-voltage and speed protection
AC short-circuit protection
AC output overcurrent protection
Surge protection (Level 2)

Applications

The GREEF ENERGY multi-functional converter delivers versatile, adaptable power management solutions across multiple critical applications:

Renewable Energy Systems: Integration with PMSG from wind and hydro turbines for off-grid or hybrid power setups
Off-Grid & Backup Power: Primary conversion and management for remote locations, cabins, and telecom stations
Grid-Interactive Systems: Grid-tied operations with battery charging and potential grid feedback
Industrial & Commercial Power: Robust performance for unbalanced loads with remote monitoring via WiFi/LAN and Modbus integration
Specialized Control Systems: Water gate motor control for micro-hydropower and Static Transfer Switch functionality

Customization Options

GREEF offers customized On Grid Controller solutions (Model: AC PCS) manufactured in China with CE certification.

Minimum Order Quantity: 1 set
Negotiable pricing for optimal value
Advanced remote control system with PWM and three-phase unloading
User-friendly touch screen interface
Rated grid frequency: 50Hz/60Hz
Operating temperature: -40°C to 60°C
Maximum charge/discharge current: 250A
Lithium-ion battery compatibility
Packaging: Secure foam and plywood cases
Delivery Time: Approximately 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
