95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

95% Maximum Efficiency On Grid Controller

LCD Smart Touch Screen Energy Management Controller

Lithium-Ion Battery AC Generator-Battery Hybrid Converter

브랜드 이름:

Greef

인증:

Model Number:

AC PCS

저희와 연락

인용 을 요청 하십시오

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

제품 세부 정보

토폴로지:

AC-DC 정류기, DC-DC 벅 부스트, DC-AC 인버터.EMS

최대효율(%):

95%

정격전압(VAC):

≥ 320

정격 배터리 전압(Vdc):

400

표시 내용:

발전기 회전수(rpm),입력전압(Vdc), 입력전류(Vac),출력전력(kW), 계통전압(Vac),계통전류(A), 오늘발전량(kWh), 이번달 발전량, 지난달 발전량, 올해 발전량,

최대교류전류(A):

180

정격 그리드 전압(V):

400

표시하다:

LCD 스마트 터치 스크린

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

가장 좋은 가격 을 구하라

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

가장 좋은 가격 을 구하라

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

가장 좋은 가격 을 구하라

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

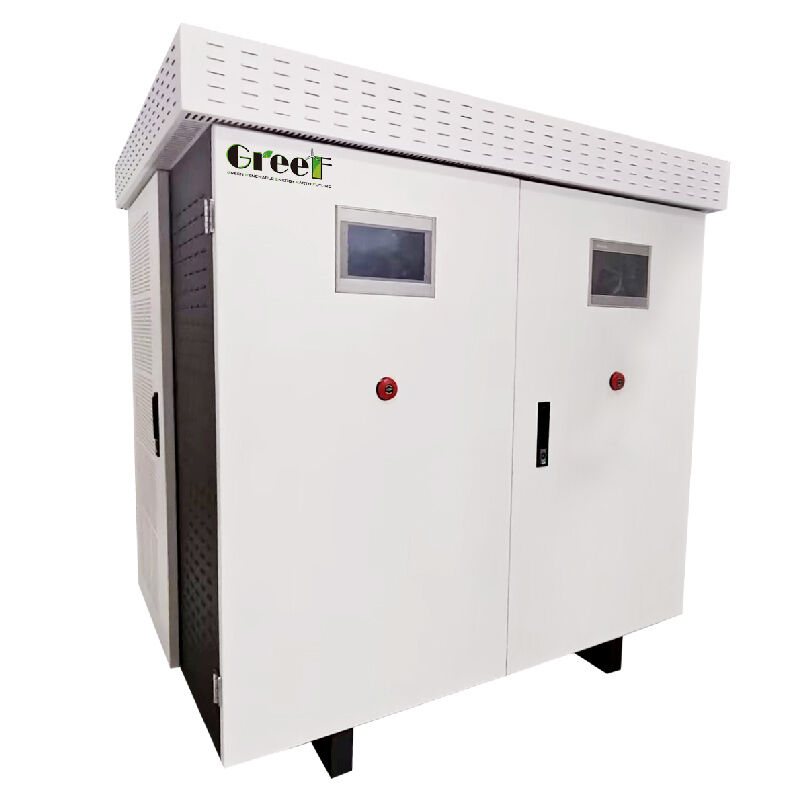

AC Generator-Battery Hybrid Converter with IP54 Protection

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple essential power management functions into a single device. It performs AC to DC conversion for permanent magnet generators, efficient battery charging, and DC to AC inversion. The system includes a comprehensive energy management system for optimized performance.

Key Features

EMS Smart Energy Management System with multiple operating modes
Dual LCD smart touchscreen display for intuitive control
Generator power curve tracking technology
AC/DC dual backup power support
Advanced unbalanced load control technology
RS485 Modbus RTU communication protocol
Optional PWM dump load protection
Water gate motor control function
WiFi/LAN remote monitoring and control
Static Transfer Switch (STS) support

Technical Specifications

Parameter Category	Specifications
Rated Power	100 kW
Rated Voltage	≥ 320 Vac
Generator Voltage Range	240-550 Vac
Battery Type	Lithium-ion
Battery Voltage Range	350-450 Vdc
Rated Battery Voltage	400 Vdc
Grid Voltage Range	300-460 V
Grid Frequency	50/60 Hz
Current THD	< 3%
Power Factor	> 0.99 (adjustable -1 to 1)

Applications

Renewable Energy Systems: PMSG integration for wind and hydro turbines
Off-Grid & Backup Power: Remote sites, cabins, telecom stations
Grid-Interactive Systems: Grid charging and power export
Industrial & Commercial: Building management system integration
Specialized Control: Water gate motors and Static Transfer Switch

Customization Options

CE certified manufacturing
Ambient temperature range: -40°C to 60°C
Minimum order quantity: 1 set
Delivery time: 25 working days
Payment terms: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Each unit is packaged in custom foam-insulated boxes with durable outer casing. Includes controller, user manual, cables, and mounting accessories. Shipping within 2 business days with tracking and insurance options available.
