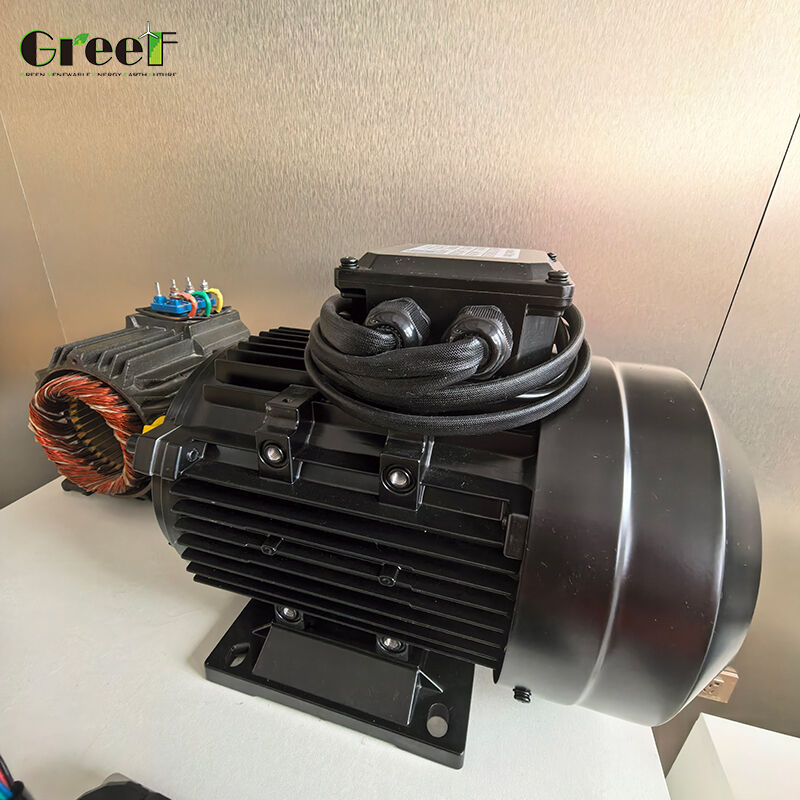

TYP 자석 모터는 영구 자석으로 장착 된 로터를 갖추고 있으며, 모터 프레임 크기에 비해 향상된 효율성과 더 높은 전력 밀도를 제공합니다. 주파수 인버터에 의해 구동됩니다.이 모터는 넓은 속도 범위에 걸쳐 안정적인 토크 출력을 제공하고 강제 환기를 하지 않고 낮은 속도로 효율적으로 작동합니다., 조용한 작동과 에너지 절감을 보장합니다.
주요 특징 및 이점
높은 효율성 과 에너지 절약
전통적인 인덕션 모터와 비교하여 최대 30%의 에너지 절감을 달성하며, 20~10%의 부하 범위에서 높은 효율을 유지합니다. 1.에 가까운 예외적인 전력 요인0 스테터 전류를 줄이고 구리 손실을 최소화.
일정한 토크 성능
강제 환기 또는 인코더 요구 사항없이 넓은 속도 범위에 걸쳐 일관된 토크를 제공합니다. 변속 속도 애플리케이션에 이상적입니다.
가루 의 수명 연장
L10 베어링 수명 100,000 시간 (10 년 이상 연속 작동) 은 지방 톱니를 통해 쉽게 재 윤활성화됩니다.
첨단 자석 기술
페리트 자석의 18배 강도를 가진 NdFeB 희토류 자석을 사용하며, 내구성 및 부식 저항성을 위해 에포시 코팅을 합니다.
통합 열 보호
와일링에 내장된 PTC 열역은 단계 손실, 과부하 및 전압 문제로 인한 과열에 대한 포괄적인 보호를 제공합니다.
동시 작동
속도는 변동 조건에서 안정적인 성능을 위해 스리프 및 로터 전력 손실을 제거하여 스테터 자기장과 동기화됩니다.
낮은 작동 전류
최대 토크 / 전류 비율 조절은 스테터 전류를 15-30% 감소시켜 전송 손실을 낮추고 케이블 용량을 증가시킵니다.
온도 상승 감소
높은 효율성과 전기 손실이 감소했기 때문에 비교 가능한 비동기 모터보다 15-20°C 낮은 온도 상승.
산업용 용도
TYP 시리즈 영구 자석 동기 모터는 다양한 산업의 주파수 변환 애플리케이션을 위해 설계되었습니다.
주사형 기계
공기 압축기와 수압 기계
파이프 제조 및 시멘트 파이프 제조
식품 처리 및 의약품 장비
플라스틱 엑스트루더 및 와이어 드래잉 기계
전기차, 로봇 및 산업 자동화
참고:최적의 성능을 위해 전용 영구 자석 모터 인버터와 결합이 필요합니다.
비용 절감 분석
37kW IE2 (GB3) 인덕션 모터를 영구 자석 모터로 교체하면 연간 에너지 비용 절감으로 약 9,000 RMB를 달성 할 수 있습니다.
사용자 정의 옵션
그리프는 TYP 모델 영구 자석 모터에 대한 포괄적인 사용자 정의 서비스를 제공합니다. 우리의 브러쉬리스 모터는 높은 전력 밀도를 갖추고 전기 차량, 로봇,및 산업 자동화 응용 프로그램.
단열등급
H
단열 저항
100Mohm Min (500Vdc)
빈도
50/60Hz
인증
CE
최소 주문
1 세트
배달 시간
25 일
지불 방법
T/T, 웨스턴 유니온, 머니그램, L/C
포장 및 운송
각 모터는 보호 재료로 안전하게 포장되어 안정성을 위해 거품 삽입이있는 맞춤형 장착 된 견고한 고지 박스에 배치됩니다.모든 패키지는 안전한 배달을 위해 명확한 취급 지침과 추적 정보를 포함합니다..
