브랜드 이름:
Greef
인증:
CE
Model Number:
TYP

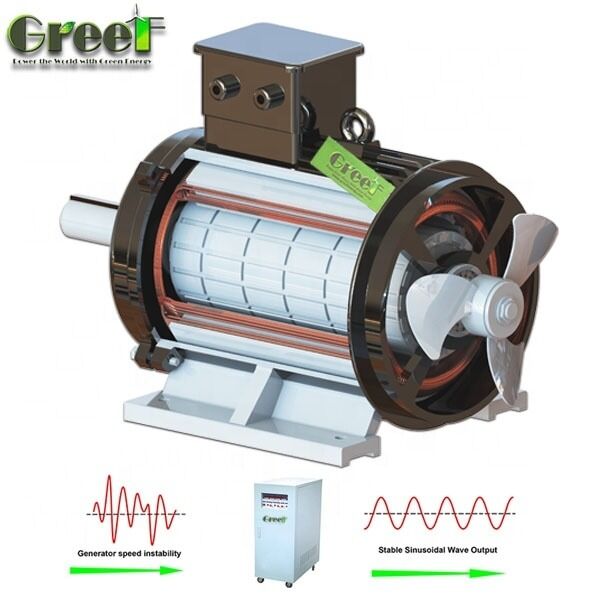

TYP magnet motors incorporate rotors equipped with permanent magnets. This advanced design brings several key benefits to the motor's performance.
One of the main advantages is the enhanced efficiency these motors provide. Additionally, they offer a higher power density relative to the size of the motor frame, making them a compact yet powerful solution.
These motors are powered by frequency inverters, which ensure a steady torque output across a broad range of speeds. This capability allows them to operate efficiently even at low speeds, outperforming traditional induction motors. Moreover, they achieve this without the need for forced ventilation, contributing to quieter operation and energy savings.
W21 magnet motors are specifically designed to operate at low speeds while maintaining low noise levels, making them an excellent choice for energy-conscious applications that require quiet operation.
This motor design enables energy savings of up to 30% when compared to traditional induction motors powered by inverters. It maintains high efficiency across a wide load range, from 20% to 110% of its rated capacity, achieving measured energy savings between 10% and 40%.
Additionally, the motor achieves an exceptional power factor close to 1.0 at rated load, with all operating points maintaining above 0.95. This high power factor reduces stator current and minimizes copper losses, contributing to overall energy efficiency.
The motor delivers consistent torque across a broad range of speeds without the need for forced ventilation. This makes it ideal for applications that require variable speed operation while maintaining constant torque, including low-speed scenarios.
Moreover, the motor operates without the necessity for an encoder, simplifying its deployment in various industrial environments.
Bearings used in this motor feature an L10 life expectancy of up to 100,000 hours, which equates to more than 10 years of continuous operation. This longevity ensures reduced downtime and higher reliability.
For maintenance convenience, the motor is equipped with grease nipples that allow for easy re-lubrication, thereby minimizing maintenance interruptions.
The motor utilizes powerful NdFeB (Neodymium/Iron/Boron) rare-earth magnets, which possess approximately 18 times the strength of conventional ferrite magnets. These magnets are coated with a protective epoxy layer to enhance mechanical durability and resist corrosion.
Safety is enhanced by the integration of PTC (Positive Temperature Coefficient) thermistors embedded within the windings. These components provide comprehensive protection against overheating, including scenarios caused by phase loss, overload, and under- or overvoltage conditions.
Being a synchronous motor, the rotor’s speed is locked in synchronization with the rotating magnetic field of the stator. This eliminates slip and rotor power loss, ensuring more efficient performance.
The motor’s speed remains stable regardless of voltage fluctuations or changes in load, which enhances control accuracy and operational reliability.
The motor employs maximum torque/current ratio control mode to maintain a high power factor throughout the entire speed range. This approach significantly lowers the motor’s stator current by 15% to 30%.
Reduced current leads to lower cable transmission losses and effectively increases the transmission capacity of the cables.
Thanks to its high efficiency and reduced electrical losses, this motor experiences a temperature rise that is 15 to 20 degrees Celsius lower than comparable asynchronous motors under identical operating conditions.
This motor is widely applicable in a variety of industrial machines, including injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food processing machines, extruders, wire drawing machines, and pharmaceutical manufacturing equipment.
Note that its use requires pairing with a dedicated permanent magnet motor inverter for optimal performance.
By replacing a 37kW IE2 (GB3) induction motor with this motor, users can achieve approximate annual energy cost savings of 9,000 RMB, assuming continuous 24/7 operation.
The TYP series represents a line of high-efficiency permanent magnet synchronous motors designed for frequency conversion applications. These motors are known for their advanced technology and energy-saving features, making them an excellent choice for various industrial uses.
These motors find extensive application across a range of machinery. They are commonly used in injection molding machines, air compressors, and pipe making equipment, where precise motor control and high efficiency are critical for optimal performance.
In addition, TYP series motors are also utilized in hydraulic machinery, food processing equipment, cement pipe manufacturing machines, plastic extruders, wire drawing machines, and pharmaceutical equipment. Their versatility and reliability make them suitable for diverse industrial environments.
Greef offers Product Customization Services for the Permanent Magnet Motor, model number TYP, originating from China. Our high power density Motor is a Brushless Permanent Magnet Motor designed to meet diverse application needs including Electric Vehicles, Robotics, and Industrial Automation.
We provide customizable low speed options to ensure optimal performance tailored to your specific requirements. Certified with CE, our motors guarantee quality and reliability. The insulation grade of H and an insulating resistance of 100Mohm Min(500Vdc) ensure durability and safety in operation.
With a frequency of 50/60HZ, this motor is suitable for various international standards. Packaging is done carefully using foam and plywooden cases to protect the product during transit. We accept minimum order quantities of 1 set, with prices negotiable to accommodate your budget.
Delivery time is approximately 25 working days. Payment terms include T/T, Western Union, MoneyGram, and L/C, providing flexibility for our customers. Our supply ability is consistent and reliable to meet your production schedules.
Our Permanent Magnet Motor is carefully packaged to ensure safe delivery and optimal protection during transit. Each motor is securely wrapped with protective materials to prevent any damage from shocks or vibrations. The motor is then placed in a custom-fitted, sturdy cardboard box designed to withstand handling and shipping stresses.
For added safety, the packaging includes foam inserts or padding to keep the motor stable and cushioned inside the box. All packages are clearly labeled with handling instructions and product information to facilitate proper care during shipping.
We offer reliable shipping options with trusted carriers to ensure timely and secure delivery. Tracking information is provided for every shipment so customers can monitor their order status from dispatch to arrival.
If you have any special packaging or shipping requirements, please contact our customer service team, and we will be happy to accommodate your needs.
