> 상품 > 격자 관제사에 >

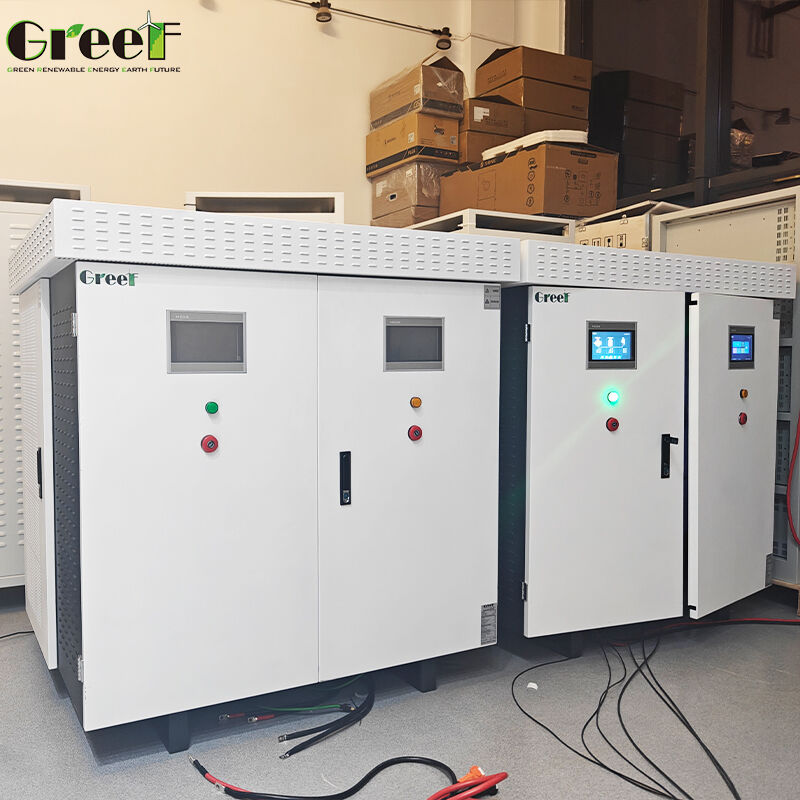

리?? 이온 배터리와 5 년 전력 연결 보증과 함께 높은 효율성 온 그리드 컨트롤러

리?? 이온 배터리와 5 년 전력 연결 보증과 함께 높은 효율성 온 그리드 컨트롤러

계통 연계 컨트롤러 효율 ≥98%

리튬 이온 배터리 발전기 하이브리드 컨버터

5년 보증 에너지 관리 컨트롤러

브랜드 이름:

Greef

인증:

CE

Model Number:

AC PCS

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
보호 기능:
과전압, 과전류, 단락, 단독 운전 방지
출력 주파수:
50HZ/60HZ
제품 유형:
발전기 하이브리드 컨버터
보증기간:
5년
애플리케이션:
풍력 발전용 터빈
그리드 모니터링:
통합된 DC 스위치:
옵션
배터리 유형:
리튬이온
강조하다:

계통 연계 컨트롤러 효율 ≥98%

,

리튬 이온 배터리 발전기 하이브리드 컨버터

,

5년 보증 에너지 관리 컨트롤러

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T,웨스턴 유니온,MoneyGram,L/C
Supply Ability
Supply Ability
제품 설명
발전기 하이브리드 변환기 비상 스위치
고효율 변환기 ≥98%의 효율과 50Hz/60Hz의 출력 주파수를 제공하는 네트워크 연결 애플리케이션.
리?? 이온 배터리와 5 년 전력 연결 보증과 함께 높은 효율성 온 그리드 컨트롤러 0
제품 개요
GREEF ENERGY 다기능 변환기는 필수적인 전력 관리 기능을 단일 콤팩트 단위로 통합합니다.배터리 충전을 지원합니다, 그리고 발전된 에너지 관리 최적화와 함께 DC-to-AC 반전을 처리합니다.
구성 가능한 이중 LCD 터치 스크린으로 장착되어 있어 모니터링 및 제어가 용이하다.이 변환기는 영구 자석 동기 발전기 (PMSG) 에 안정적인 전압 및 주파수 조절을 제공하기 위해 최첨단 기술을 사용합니다., 안정적인 끊김 없는 전원 공급을 보장합니다.
이 장치는 구성이 가능한 격자 연결 모드로 작동 유연성을 제공합니다.다양한 에너지 관리 시나리오를 위해 네트워크 연결 운영과 네트워크 충전 기능의 원활한 전환을 가능하게 하는 것.
주요 특징
  • EMS 스마트 에너지 관리 시스템여러 가지 구성 가능한 작동 모드 (오프그리드, 네트워크 연결, 네트워크 충전)
  • 직관적인 모니터링 및 제어를 위한 이중 LCD 스마트 터치 스크린 디스플레이
  • 최적의 성능을 위한 발전기 전력 곡선 추적 기술
  • 보조 전원 공급에 대한 AC/DC 이중 백업 기능
  • 불균형 부하를 처리하기 위한 첨단 제어 기술
  • 무선 장치 통합을 위한 RS-485 Modbus RTU 프로토콜
  • 전압 과 속도 과잉에 대한 PMW 덤프 로드 보호 옵션
  • 수문 모터 제어 기능
  • 전용 앱으로 WiFi 또는 LAN을 통해 원격 모니터링 및 제어
  • 사용자 정의 센서 제어 기능
  • 네트워크 연결 및 네트워크 외부 애플리케이션에 대한 정적 전송 스위치 (STS) 지원
기술 사양 - Mars-100kt 모델
가등식 전력 100kW
가등전압 ≥320 Vac (이 이상적: 450 Vac)
AC 전압 작동 범위 240Vac ~ 550Vac
최대 AC 전류 180A
배터리 종류 리?? 이온
배터리 전압 범위 350Vdc ~ 450Vdc
배터리 등급 전압 400Vdc
최대 전류 250A
정량 충전/발전 전류 144A
정렬 전압 400V
네트워크 전압 범위 300V ~ 460V
그리드 주파수 50 Hz / 60 Hz
최대의 효율성 95%
신청서
  • 재생 에너지 시스템- 풍력 터빈과 수력 터빈에서 PMSG를 오프그리드 또는 하이브리드 구성으로 통합합니다.
  • 전력 및 백업 전력- 원격 위치, 객실 및 통신 스테이션의 주요 변환 및 제어 허브
  • 그리드 인터랙티브 애플리케이션- 배터리 충전 및 잠재적 에너지 피드백과 함께 네트워크 연결 작업을 지원합니다.
  • 산업 및 상업용 전력 관리- 불균형의 부하와 원격 모니터링 기능으로 안정적인 전력을 보장합니다.
  • 특수 제어 시스템- 물 게이트 모터 제어 및 정적 전송 스위치 (STS)
이 다재다능한 플랫폼은 전기 생산, 에너지 저장, 소비 관리 및 네트워크 인터페이스 기능을 통합하여 주거용, 상업용,그리고 소규모 재생 에너지 응용 프로그램.
사용자 정의 옵션
그리프는 1 세트의 최소 주문량으로 온 그리드 컨트롤러 (모델: AC PCS) 의 포괄적 인 커스터마이징을 제공합니다. CE 인증을 받고 중국에서 제조됩니다.
리?? 이온 배터리 통합과 과전압, 과전류, 단전 및 반 섬화 보호 등 필수 보호 기능을 갖춘 고급 네트워크 모니터링
안전 배송을 위해 폼 및 접합판 케이스에 포장됩니다. 약 25 일 이내에 배달됩니다. 결제 방법은 T / T, 웨스턴 유니온, 머니 그램 및 L / C입니다.
풍력 발전기 컨트롤러와 DC DC 스위치 컨트롤러에 대한 신뢰할 수 있는 공급 능력을 가진 5 년 보증으로 지원됩니다.
