> 상품 > 격자 관제사에 >
50Hz/60Hz 출력 주파수 LCD 터치 스크린과 산업 자동화를 위한 리?? 이온 배터리

50Hz/60Hz 출력 주파수 LCD 터치 스크린과 산업 자동화를 위한 리?? 이온 배터리

50Hz/60Hz 출력 주파수

LCD 터치 스크린 에너지 관리 컨트롤러

리?? 이온 배터리 그리드 연결 컨트롤러

브랜드 이름:

Greef

인증:

CE

Model Number:

AC PCS

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
그리드 모니터링:
배터리 유형:
리튬이온
애플리케이션:
풍력 발전용 터빈
수동 기능:
수동 브레이크, 리셋, 비상 스위치
통합된 DC 스위치:
옵션
보호 기능:
과전압, 과전류, 단락, 단독 운전 방지
출력 주파수:
50HZ/60HZ
LCD:
LCD 터치 스크린
강조하다:

50Hz/60Hz 출력 주파수

,

LCD 터치 스크린 에너지 관리 컨트롤러

,

리?? 이온 배터리 그리드 연결 컨트롤러

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T,웨스턴 유니온,MoneyGram,L/C
Supply Ability
Supply Ability
제품 설명
산업 자동화를 위한 50Hz/60Hz 출력 주파수를 갖춘 비상 스위치 터치 스크린 디스플레이
50Hz/60Hz 출력 주파수 LCD 터치 스크린과 산업 자동화를 위한 리?? 이온 배터리 0
제품 개요
GREEF ENERGY 다기능 컨버터는 필수적인 전력 관리 기능을 단일 산업용 장치에 통합합니다. 영구 자석 발전기용으로 특별히 설계된 AC-DC 정류를 수행하고, 배터리 충전을 용이하게 하며, DC-AC 인버전 기능을 제공합니다. 정교한 에너지 관리 시스템을 갖춘 이 컨버터는 까다로운 산업 응용 분야에 대한 전반적인 성능을 최적화합니다.
구성 가능한 듀얼 LCD 터치 스크린을 특징으로 하는 이 컨버터는 직관적인 작동과 상세한 제어 옵션을 제공합니다. 첨단 컨버터 기술은 영구 자석 동기 발전기(PMSG)에 대한 안정적인 전압 및 주파수 조절을 보장하여 연결된 부하에 지속적이고 안정적인 전원 공급을 보장합니다.
이 시스템은 계통 연계 작동을 위해 구성할 수 있으며, 계통 연결 작동 및 계통에서 배터리 충전을 위해 유틸리티 계통과 동기화하여 다양한 에너지 관리 시나리오에서 시스템 적응성을 향상시킵니다.
주요 특징
  • EMS 스마트 에너지 관리 시스템 (오프 그리드, 계통 연계, 계통 충전 등 여러 구성 가능한 작동 모드 포함)
  • 직관적인 모니터링 및 제어를 위한 듀얼 LCD 스마트 터치 스크린 디스플레이
  • 최적화된 효율성을 위한 고급 발전기 전력 곡선 추적 기술
  • 보조 전원 공급을 위한 AC/DC 듀얼 백업
  • 불균형 부하를 위한 특수 관리
  • 네트워크 통합을 위한 표준 RS-485 Modbus RTU 프로토콜
  • 선택 사양인 PWM 덤프 부하 과전압 및 과속 보호
  • 수문 모터 제어 기능
  • 전용 앱을 통한 WIFI 또는 LAN을 통한 원격 모니터링 및 제어
  • 맞춤형 센서 제어 기능
  • 계통/오프 그리드 전환을 위한 정적 전송 스위치(STS) 지원
기술 사양
모델 Mars-100kt
정격 전력 출력 100 kW
정격 전압 ≥320 Vac
발전기 정격 전압 450 Vac
AC 전압 작동 범위 240-550 Vac
최대 AC 전류 180 A
배터리 유형 리튬 이온
배터리 전압 범위 350-450 Vdc
정격 배터리 전압 400 Vdc
최대 충전/방전 전류 250 A
정격 충전/방전 전력 100 kW
정격 계통 전압 400 V
계통 전압 범위 300-460 V
지원되는 계통 주파수 50 Hz / 60 Hz
최대 효율 95%
응용 분야
  • 재생 에너지 시스템 - 오프 그리드 또는 하이브리드 전원 설정을 위한 PMSG 풍력 및 수력 터빈과의 통합
  • 오프 그리드 및 백업 전원 - 원격 위치, 캐빈 및 통신을 위한 중앙 전력 변환
  • 계통 연계 시스템 - 배터리 충전 및 에너지 피드백 기능을 갖춘 계통 연계 작동
  • 산업 및 상업 전력 관리 - 불균형 부하 처리 및 원격 모니터링을 통한 안정적인 전원 공급
  • 특수 제어 시스템 - 마이크로 수력 발전 및 STS 통합을 위한 수문 모터 제어
맞춤 설정 옵션
GREEF는 중국에서 설계 및 제조된 맞춤형 계통 연계 컨트롤러 솔루션(모델 AC PCS)을 제공합니다. 당사 제품은 CE 인증을 받았으며 신뢰할 수 있는 품질과 안전 표준을 갖추고 있습니다. 최소 주문 수량은 1세트이며 가격은 협상 가능합니다.
계통 연계 컨트롤러는 풍력 컨트롤러 관리를 위한 강력한 원격 제어 기능을 갖추고 있습니다. LCD 터치 스크린을 장착하여 사용자 친화적인 계통 모니터링 및 제어를 제공합니다. 이 AC-DC 출력 장치는 최적의 성능을 위해 50Hz/60Hz에서 ≥98%의 효율로 작동합니다.
표준 배송 시간은 25일이며 T/T, Western Union, MoneyGram 및 L/C를 포함한 유연한 지불 조건이 적용됩니다. 포장에는 안전한 배송을 보장하기 위해 보호 폼과 합판 케이스가 포함되어 있습니다.

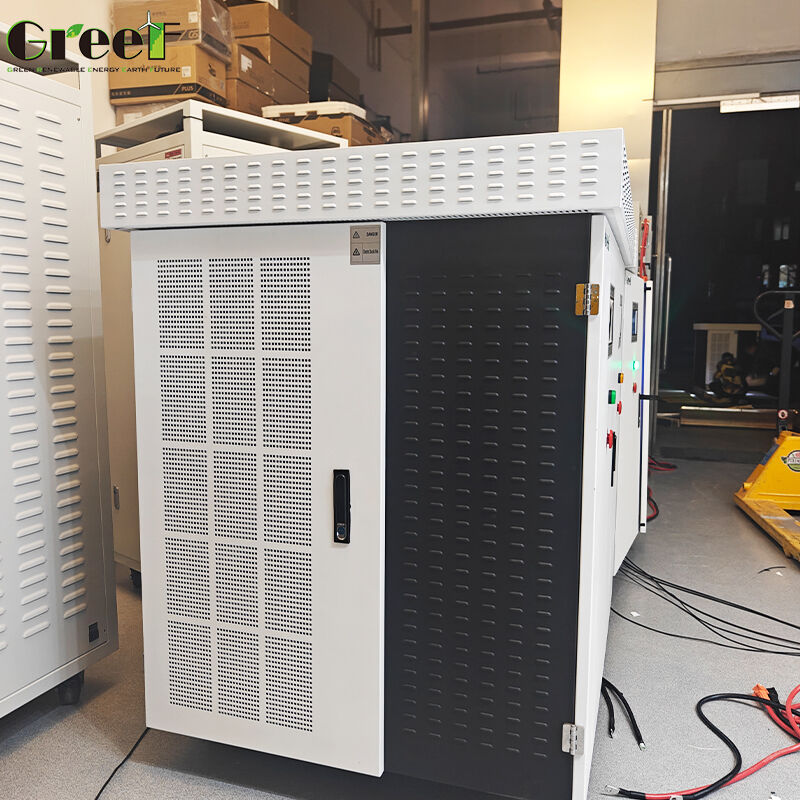

50Hz/60Hz 출력 주파수 LCD 터치 스크린과 산업 자동화를 위한 리?? 이온 배터리 1
