> 상품 > 격자 관제사에 >

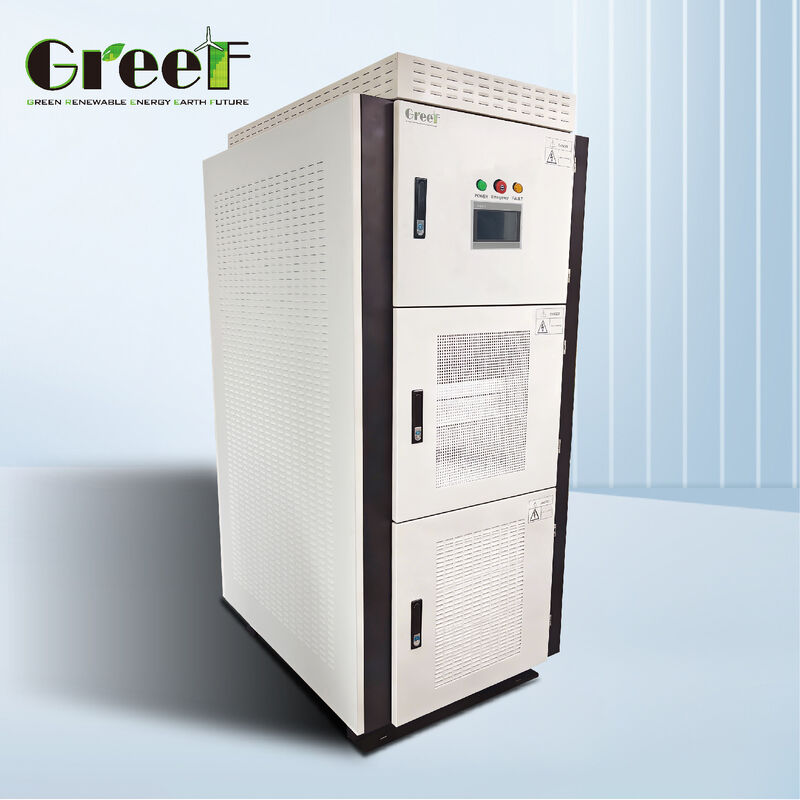

지능형 온기 냉각 전력 제어기 50 Hz 60 Hz 출력 주파수 및 에너지 관리를 위해 작동 온도 범위 -20 °C ~ 60 °C

지능형 온기 냉각 전력 제어기 50 Hz 60 Hz 출력 주파수 및 에너지 관리를 위해 작동 온도 범위 -20 °C ~ 60 °C

네트워크 컨트롤러에 지능형 공기 냉각

출력 주파수 50 Hz 60 Hz 그리드 연결 변환기

작동 온도 범위 -20°C ~ 60°C 에너지 관리 제어기

브랜드 이름:

Greef

인증:

CE

Model Number:

AC PCS

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
표시 내용:
발전기 회전수(rpm),입력전압(Vdc), 입력전류(Vac),출력전력(kW), 계통전압(Vac),계통전류(A), 오늘발전량(kWh), 이번달 발전량, 지난달 발전량, 올해 발전량,
보호 수준:
IP54
제품 유형:
그리드 연결형 컨버터
입력 전압 범위:
240-550V DC
표시하다:
LCD 스마트 터치 스크린
보호 정도:
IP54
허용 계통 전압 범위(v):
300-460v
힘:
100/150/200/250/300/400/500/600/700/800/1000KW
강조하다:

네트워크 컨트롤러에 지능형 공기 냉각

,

출력 주파수 50 Hz 60 Hz 그리드 연결 변환기

,

작동 온도 범위 -20°C ~ 60°C 에너지 관리 제어기

지불 및 배송 조건
Minimum Order Quantity
1Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
지불 조건
T/T,웨스턴 유니온,MoneyGram,L/C
Supply Ability
Supply Ability
제품 설명
네트워크 컨트롤러에 지능형 공기 냉각
발전된 네트워크 연결 변환기, 출력 주파수 50 Hz/60 Hz, 작동 온도 범위 -20°C에서 60°C까지, 포괄적인 에너지 관리 솔루션.
제품 개요
GREEF ENERGY 수력 전력망 연결 변환기는 하나의 고급 시스템으로 여러 가지 필수 기능을 통합합니다.그것은 영구 마그네트 발전기와 DC-to-AC 역전을 위한 AC-to-DC 정리를 수행, 성능과 효율성을 최적화하도록 설계된 지능형 에너지 관리 시스템을 갖추고 있습니다.
사용자 요구에 맞게 구성할 수 있는 이중 LCD 터치 스크린을 장착하고,이 변환기는 최첨단 기술을 활용하여 터빈 회전 속도를 지속적으로 모니터링하고 출력 전력을 실시간으로 제어합니다., 영구 자석 동기 발전기에 대한 정밀 전압 및 주파수 조절을 보장합니다.
이 시스템은 지능형 물 게이트 제어 기능을 포함하고 있으며, 수준, 흐름 및 압력 모니터링을 위한 여러 센서를 통합하고 있습니다.다양한 조건에서 안전하고 안정적인 운영을 보장하는 종합적인 안전 제어 시스템을 형성하는 것.
주요 특징
  • 구성 가능한 작동 모드 (오프그리드, 네트워크 연결, 네트워크 충전) 와 함께 EMS 스마트 에너지 관리 시스템
  • 직관적인 모니터링 및 제어를 위한 이중 LCD 스마트 터치 스크린 디스플레이
  • 최적의 성능을 위한 발전기 전력 곡선 추적 기술
  • AC와 DC 복합 백업 전원 공급 옵션
  • 안정성을 높이는 불균형 부하의 제어 기술
  • RS 485 무선 통합을 위한 Modbus RTU 프로토콜 준수
  • 과압 및 과속에 대한 선택적 PWM 덤프 로드 보호
  • 워터 게이트 모터 제어 및 전용 앱을 통해 WIFI/LAN 원격 모니터링
  • 커스터마이징 가능한 센서 제어 기능과 정적 전송 스위치 (STS) 옵션
지능형 온기 냉각 전력 제어기 50 Hz 60 Hz 출력 주파수 및 에너지 관리를 위해 작동 온도 범위 -20 °C ~ 60 °C 0
기술 사양
출력 주파수 50 Hz / 60 Hz
작동 온도 범위 -20°C ~ 60°C
표시 모드 터치 스크린 디스플레이가 있는 LCD 터치 스크린
냉각 방법 지능형 공기 냉각
허용된 네트워크 전압 범위 300~460V
보호 수준 IP54
출력 전압 400/450 VAC
출력 유형 AC-DC
최대의 효율성 95%
표시 기능 LCD SMART 터치 스크린; PWM 배하 + 3단계 배하 시스템 및 전력 곡선 제어 기능
신청서
그리프 온 그리드 컨트롤러 (모델 AC PCS) 는 다양한 재생 에너지 애플리케이션에서 효율적인 에너지 관리를 위해 설계되었습니다.CE 인증을 받았고 지능형 공기 냉각으로 강력한 IP54 보호 기능을 갖추고 있습니다, 그것은 실내 및 야외 두 가지 설치에 적합합니다.
주요 응용 분야:
  • 정밀한 터빈 속도 및 바람 속도 모니터링을 갖춘 풍력 발전 시스템
  • 태양광 발전소 및 하이브리드 재생 에너지 시스템
  • 네트워크 동기화 및 전력 변환 관리
  • 터치 스크린 디스플레이를 통해 실시간 운영 매개 변수 시각화
전력 범위:100 KW에서 1000 KW
입력 전압:240~550V DC
배달:안전 스펀 및 프라이우드 포장재로 25 일
최소 주문:1 세트
지불 옵션:T/T, 웨스턴 유니온, 머니그램, L/C
사용자 정의 및 추가 정보
그리프 AC PCS 온 그리드 컨트롤러는 100 KW에서 1000 KW까지 광범위한 전력 범위를 지원하며 IP54 보호 수준으로 -20 °C에서 60 °C 온도 범위 내에서 작동합니다.
커뮤니케이션 및 모니터링원활한 통합을 위해 이더넷, RS485 및 WIFI를 포함한 여러 통신 모드. 포괄적인 디스플레이는 발전기 속도 (rpm), 입력 전압 (Vdc), 입력 전류 (Vac),출력 전력 (kW), 전력 전압 (Vac), 전력 전류 (A) 및 전력 곡선 설정과 함께 매일, 월, 연간 출력을 포함한 상세한 전력 생산 통계.
유연한 구매 옵션, 협상 가능한 가격, 그리고 여러 가지 결제 방법,Greef AC PCS는 훌륭한 공급 능력과 뛰어난 성능을 가진 신뢰할 수있는 풍력 발전기 제어 솔루션을 제공합니다..
