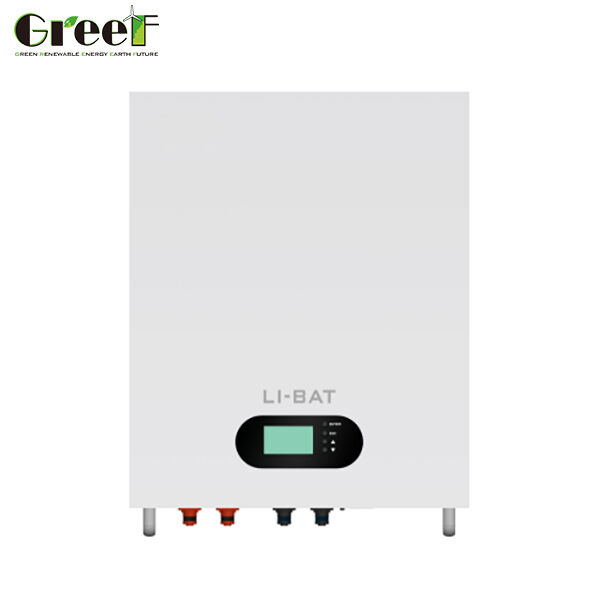

이 고급 모듈식 에너지 저장 리튬 배터리는 설치 공간을 최적화하는 높은 통합성을 특징으로 합니다. 고성능 리튬 인산철 셀을 활용하여 뛰어난 일관성, 안정성 및 10년 이상의 설계 수명을 제공하여 장기적인 신뢰성을 보장합니다.
이 시스템은 원터치 전원 켜기/끄기 기능과 전면 접근 배선으로 사용자 친화적인 작동을 제공하여 설치 및 유지보수를 간소화합니다. 과열, 과충전, 과방전 및 단락 보호 기능을 포함한 포괄적인 보호 기능으로 안전하고 안정적인 성능을 보장합니다.
강력한 호환성을 갖춘 이 배터리는 UPS 시스템, 태양광 발전 및 기타 장비와 원활하게 통합됩니다. 통신 인터페이스는 CAN 및 RS485 프로토콜을 지원하며 다양한 원격 모니터링 요구 사항에 맞게 사용자 정의할 수 있습니다.
고에너지, 저소비 리튬 이온 기술과 고급 배터리 보호 및 고장 격리 메커니즘을 사용하여, 이 제품은 정교한 배터리 관리 시스템(BMS)과 직렬-병렬 구성의 프리미엄 리튬 인산철 셀을 통합합니다. 독립형 DC 전원 공급 장치 및 다양한 에너지 저장 시스템의 기본 구성 요소 역할을 하며, 통신 기지국, 데이터 센터 백업 전원 및 주거/산업 에너지 저장 애플리케이션에 적합합니다.
주요 특징
화면 직접 인버터 통신: 간소화된 설정과 향상된 사용자 경험을 위한 직관적인 인터페이스
친환경: 녹색 에너지 솔루션을 촉진하는 지속 가능한 디자인
높은 에너지 밀도: 컴팩트한 크기에 최대 전력 저장
긴 사이클 수명: 시간이 지남에 따라 최소한의 성능 저하로 일관된 성능
낮은 자가 방전율: 빈번한 재충전 필요성을 줄이는 효율적인 충전 유지
넓은 작동 온도 범위: 다양한 환경 조건에서 효과적인 성능
확장성 및 편의성: 쉬운 확장을 위한 자동 주소 지정 기능이 있는 병렬 연결 기능
기술 사양
보관 온도
-10°C ~ 55°C (권장: 10°C ~ 35°C)
냉각 방식
자연 공기 냉각 / 지능형 팬
표준 전압
48V
보호 등급
IP20
시스템 전압
51.2V
사이클 수명
6000 사이클 이상
용도
태양광 / 풍력 / 수력 에너지 시스템
보호
내장 BMS
BMS
스마트 BMS 시스템
통신
RS485
응용 분야
리튬 배터리는 여러 고급 기술 및 산업 전반에 걸쳐 기본 구성 요소 역할을 합니다:
운송: 효율적이고 지속 가능한 에너지원으로 신에너지 차량에 동력 공급
에너지 저장: 전력망 안정화 및 재생 에너지 통합 지원
항공 우주: 경량 고성능 에너지 솔루션으로 중요 시스템 지원
의료 장비: 필수 환자 치료 및 모니터링 장치에 안정적인 전원 공급 보장
맞춤형 옵션
Greef는 중국에서 설계 및 제조된 맞춤형 에너지 저장 리튬 배터리 솔루션(모델: GBP)을 제공합니다.
Since installing this variable-pitch wind turbine, the battery hasn’t run low again. Before, I used to worry whenever we had consecutive overcast days and light winds in the winter, but now it can even charge the battery in low winds. Best of all, it doesn’t suddenly start screeching during gusts, so it doesn’t disturb my family’s sleep. The installer also mentioned that variable-pitch turbines are easier to calibrate than fixed-pitch ones. I give it five stars!
I run a small dairy farm in northern Norway, far from the power grid. A few years ago, I installed solar panels and a Deye inverter, but the solar system basically stops working in winter, and the diesel generator was costing me a fortune. This year, I added this variable-pitch wind turbine and connected it to the Deye inverter for a hybrid solar-wind system, and we haven’t had a single power outage all winter. This wind turbine starts up at low wind speeds of just 2–3 on the Beaufort scale. During blizzards, the blades automatically pitch down to slow the turbine, preventing runaway speeds, and it’s much quieter than my neighbor’s fixed-pitch model. The Deye inverter’s switching logic is smart—it prioritizes solar power when available, and automatically switches to the wind turbine when solar output drops. It’s all clearly visible on the app. Now, the diesel generator is practically idle. Wind and solar backing each other up—that’s true off-grid freedom.
“I built a small pico hydro system on the creek behind my off-grid cabin. The water head is only 3 meters and flow rate around 0.2 m³/s – too low for most generators. This axial flux coreless unit starts generating usable power at just 150 RPM. No cogging, no iron loss, and it’s silent. I’m getting 300-400W continuously, 24/7. My old induction generator would barely light an LED at that speed. Absolutely perfect for low-head hydro.”
