> 상품 > 영구 자석 발전기 >
저속 및 IP54 보호 기능을 갖춘 고효율 영구 자석 발전기 (에너지 변환용)

저속 및 IP54 보호 기능을 갖춘 고효율 영구 자석 발전기 (에너지 변환용)

브랜드 이름:

Greef

인증:

CE

Model Number:

GDF

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
효율:
>95%
발전기 유형:
3개 단계 AC 영구 자석
IP 수준:
IP67
제품명:
영구 자석 발전기
폴:
2-48
현재 유형:
교류
권선 재료:
와이
정격 회전 속도:
20~3000 회전
지불 및 배송 조건
Minimum Order Quantity
1 Set
가격
협상 가능
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T
제품 설명
2 ~ 48 폴 영구 자석 발전기 95% 이상의 효율을 제공합니다
저속 및 IP54 보호 기능을 갖춘 고효율 영구 자석 발전기 (에너지 변환용) 0

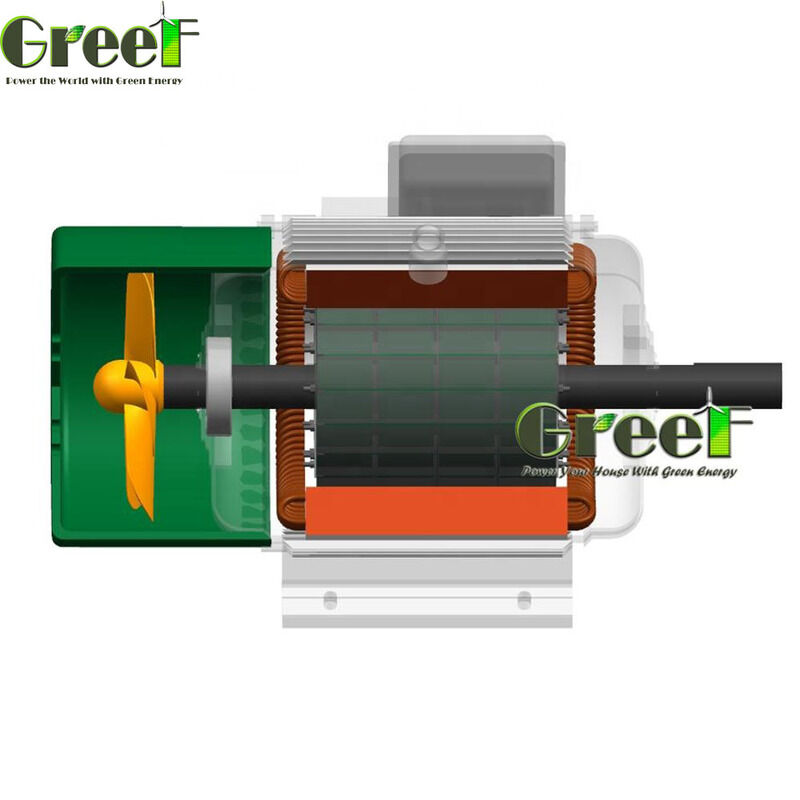

제품 개요
영구 자석 발전기의 기본 개념은 고정된 자기장을 생성하기 위해 영구 자석 물질을 통합하는 로터에 있습니다.이 자기장은 로터 안에 내장된 영구 자석의 고유 속성 때문에 일정하게 유지됩니다..
풍력 터빈, 수력 터빈, 또는 엔진과 같은 외부의 원동력이 로터를 회전시키면 로터에서 생성되는 자기장도 회전합니다.이 회전 자기장이 스테터 윙링을 통과 하는 동안, 그것은 주위 주름에 선도자와 상호 작용합니다.
전자기 인덕션 법칙에 근거하여, 스테터 와일링에 대한 자기장의 움직임은 그 와일링 내에서 전기 운동 힘 (EMF) 을 유발합니다.외부 부하 또는 회로를 스테터에 연결하여, 발전기는 기계 에너지에서 생성되는 전기 에너지를 공급할 수 있습니다.
주요 특징
  • 단순하고 견고한 설계로 직접 구동 시스템, 기어박스의 필요성을 제거
  • 최소한의 유지 보수와 신뢰성을 높이는 브러쉬리스 메커니즘
  • 고효율 95%를 초과하고 1에 가까운 전력 요인
  • 시lockwise 및 반시lockwise 둘 다 회전을 지원하는 삽입 Nd-Fe-B 영구 자석
  • 저속에서도 높은 전압과 전력을 생산할 수 있다.
  • 24시간, 24시간, 24시간 연속 운용 가능한 20년 이상의 장수
  • 커스터마이징 가능한 전압, 속도, 전력, 주파수 및 기타 사양
  • 평생 유지보수 및 서비스 지원과 함께 3년 무료 보증 기간
기술 사양
매개 변수 사양
등급 전력 0.5kW에서 5000kW
가속도 20~3000 rpm
빈도 50~60 Hz
발전기 유형 동시 3단계 AC
폴란드인 수 2 ~ 48
마그네트 종류 NdFeB
윙링 방법 Y형
자석 온도 120°C까지
윙 온도 180°C까지
효율성 > 95%
단열등급 H
단열 저항 500V DC에서 ≥ 100 MΩ
주택 재료 금속
롤링 100% 구리
철핵 냉불 실리콘 스틸 엽
셰프트 재료 철강
라이거 SKF 브랜드
냉각 시스템 팬 냉각
보호등급 IP54
설치 수평 및 수직
무게 약 1200kg
저속 및 IP54 보호 기능을 갖춘 고효율 영구 자석 발전기 (에너지 변환용) 1
신청서
  • 풍력 발전:현대 직동 및 반 직동 풍력 터빈의 핵심 부품
  • 해양 및 해상:선박 셰프트 제너레이터 및 주력/지원 전력 시스템
  • 백업 전력 시스템:비상 전력용 디젤 및 가스 발전기 세트
  • 고속 애플리케이션:마이크로 터빈 및 플라이휠 에너지 저장 시스템
  • 산업 부문:높은 전력 밀도와 뛰어난 신뢰성을 요구하는 특화된 상황
사용자 정의 옵션
모델:GDF입니다.원산지:중국냉각:팬입니다.효율성:>95%
보호:IP54입니다.인증:CE입니다.현재 타입:AC
작업:낮은 시작 토크와 낮은 회전 속도
우리는 1 세트의 최소 주문량으로 유연한 사용자 정의를 제공합니다. 가격은 프로젝트 요구 사항에 따라 협상 가능합니다. 배달 시간은 일반적으로 T / T에 기반한 지불 조건으로 25 일입니다..
포장 및 운송
각 영구 자석 발전기는 운송 중에 보호를 위해 주의 깊게 반 정적 거품과 거품 포장을 포장합니다.발전기 는 더 많은 포장 재질 이 들어 있는 견고 한 파동 판지 상자 에 배치 됩니다더 큰 모델은 더 많은 내구성을 위해 나무 상자에 포장됩니다.
모든 포장재 는 환경 에 친화적 이며 재활용 될 수 있다. 항공, 해상, 육상 운송 으로 운송 할 수 있다.패키지는 처리 지침과 함께 명확하게 표시되며 추적 정보가 제공됩니다..
