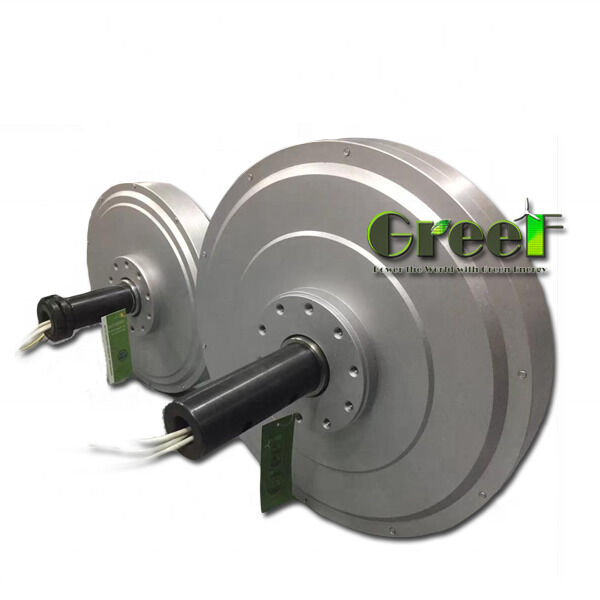

3 Phase Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Gearless Direct Drive for Industrial Applications

브랜드 이름:

Greef

인증:

Model Number:

GDG

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

스타트 토크:

<0.03N/M

발전기 쉘 재료:

알루미늄 합금

정격전압:

맞춤형

회전 속도:

맞춤형

벤딩 방식:

와이

위상 유형:

3상

베어링:

NSK 딥 그루브 볼베어링

지불 및 배송 조건

Minimum Order Quantity

1Set

가격

협상 가능

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

지불 조건

T/T,웨스턴 유니온,MoneyGram,L/C

Supply Ability

Coreless Permanent Magnet Generator with Low Start Torque Maintenance-Free Design for 50/60HZ Frequency

가장 좋은 가격 을 구하라

비디오

Maintenance-free Coreless Permanent Magnet Generator with Low Start Torque and High Efficiency for Wind Power

가장 좋은 가격 을 구하라

비디오

3 Phase Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Gearless Direct Drive for Industrial Applications

가장 좋은 가격 을 구하라

비디오

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-free Design for Wind Power

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

3 Phase Coreless Permanent Magnet Generator

Product Overview

The GREEF NEW ENERGY GDG series features a disc-type permanent magnet generator that operates without an iron core. This innovative design consists of a spindle and rotor arranged in a disc shape, where the stator is fixed at the center, and the rotor rotates on both sides. Notably, the spindle contains only windings and lacks an iron core, enhancing performance and reducing weight.

Both the stator and rotor are constructed as flat disc structures that utilize axial air gap magnetic flux. They are alternately positioned along the axial direction, which contributes to the generator's compact and efficient design. Due to its short axial length and large diameter, the disc generator easily supports a multi-pole configuration, resulting in a high power-to-mass ratio.

The GDG series boasts several advantages including a low speed rating, the ability to start at low wind speeds, small size, reduced energy consumption, light weight, a compact structure, and high efficiency. These characteristics make it an ideal choice for direct-drive vertical axis wind turbines.

Key Features

Low Start Torque Technology: Eliminates hysteresis and gear notch effects with starting torque less than 0.1 N*m
High Efficiency: Very low mechanical resistance and minimal energy loss without core
Advanced Technology: "Precise Coil" technology with rare earth permanent magnets and multi-pole design
Maintenance-Free Design: Gearless direct drive and brushless construction
Enhanced Reliability: 8 times longer lifespan than traditional generators
Optimized Low Wind Performance: Better utilization in low wind speed conditions
Excellent Heat Dissipation: Aluminum alloy outer frame with specialized internal structure

Applications

Wind Power Generation: Ideal for megawatt-class wind turbines with enhanced output density
Renewable Energy Systems: Solar and wind power setups with efficient energy conversion
Industrial Power Sources: Backup or auxiliary power units for various industrial equipment
Customized Solutions: Tailored parameters for specific application requirements

Customization Options

Greef offers customized Coreless Permanent Magnet Generators under the model number GDG, featuring coreless wire coil stator and multi-poles inner-rotor design for high power density.

Available Customizations:
• Horizontal and vertical shaft types
• Flange or foot mounting types
• Rotate speed and operating frequency (50/60HZ)
• Generator power, rotational speed, and output voltage

Packaging & Shipping

Each generator is securely wrapped with anti-static and shock-absorbing materials and placed in custom-fitted cardboard boxes. Bulk orders are palletized with protective corner guards and shrink wrap.

Shipping Options: Air freight, sea freight, and express courier services
Packaging Features: Reinforced outer cartons with clear handling instructions
Quality Assurance: All shipments are tracked and insured

Order Information

Model: GDG
Minimum Order: 1 set
Delivery Time: Approximately 25 working days
Certification: CE Certified
Payment Terms: T/T, Western Union, MoneyGram, L/C

등급& 검토

전체 평점

5.0

이 공급자에 대한 50개의 리뷰를 바탕으로

평점 스냅샷

모든 등급의 분포는 다음과 같습니다.

5 별

100%

4 별

3 별

2 별

1 별

모든 리뷰

L*s

Czech Republic May 4.2023

도움 이 될 것 입니다 (4)

“I built a small pico hydro system on the creek behind my off-grid cabin. The water head is only 3 meters and flow rate around 0.2 m³/s – too low for most generators. This axial flux coreless unit starts generating usable power at just 150 RPM. No cogging, no iron loss, and it’s silent. I’m getting 300-400W continuously, 24/7. My old induction generator would barely light an LED at that speed. Absolutely perfect for low-head hydro.”
